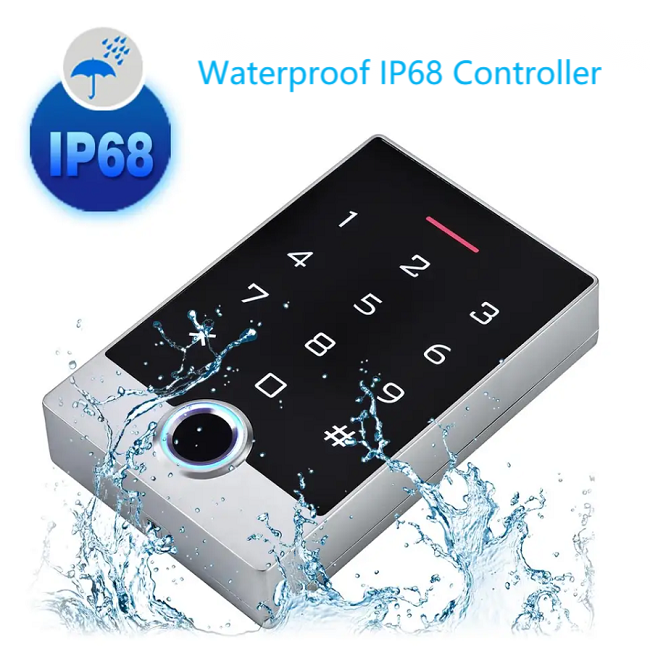

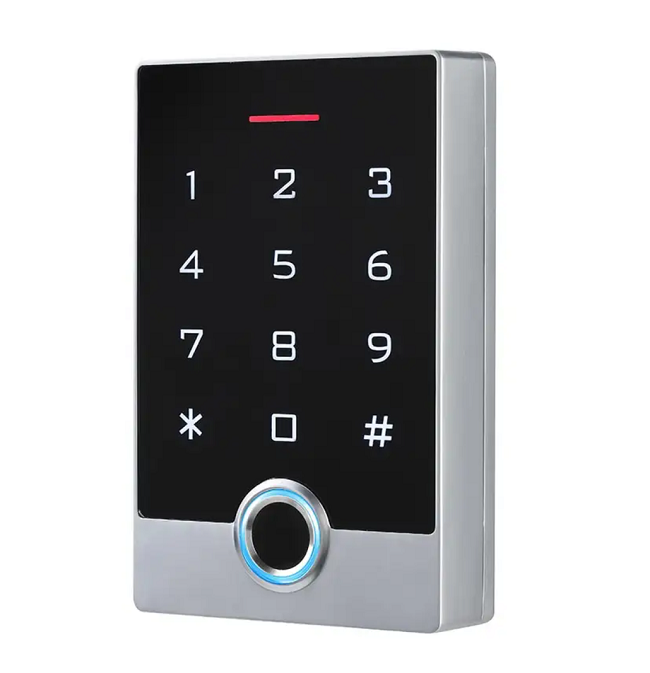

IP68 Waterproof WIFI Tuya Fingperint Access Controller

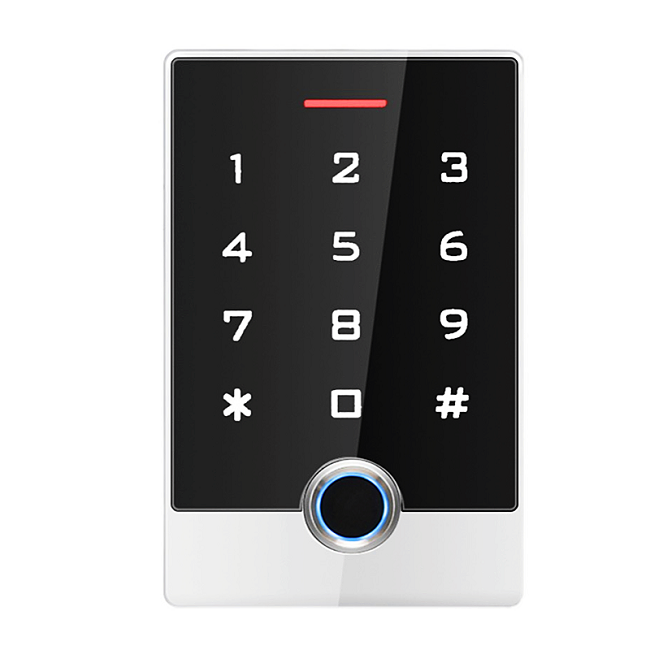

Model:F2
300 fingerprint/ 10000 User or Pin
Weigand 26 out/in (be used as weigand reader to controller, connect extra reader )
EM or Mifare Reader built in
Entry Mode: Fingerprint/Card/Pin
Operating Voltage:12-24 V DC 35mA

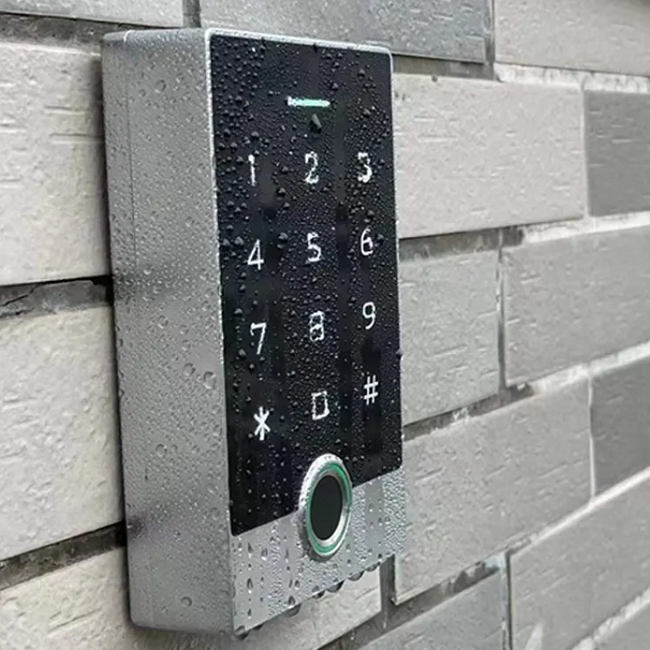

Touch type IP68 Equipment
Description
Fingperint Access Controller Touch Keypad Reader
This series product is a new generation of multl -function standalone access control. It adopts new ARMcore32-bitmicroprocessor design, which is powerful, stable and reliable. It contains reader node and standalone access control mode etc.. It’s widely applied to different occasions, such as office,residential communities, villa, bank and prison ect.
1. Wifi Tuya Fingerprint Access Controller Features:
| Card Type: | 125khz EM/ID Card 13.56mhz Mifare/IC Card |
| Keypad Characteristic: | Metal backlight keypad |
| Output Way: | contain reader mode, the transmission format could be adjusted by user |
| Access Way: | Support seven access ways, Card/ Pin/ Card+Pin/ Fingerprint |
| Admin Card: | Support admin add card and admin delete card |
| User Capacity: | 10,000 card users and 300 fingerprint user |
2.Wifi Tuya Fingerprint Access Controller Technical Specifications
| Operating Voltage: | DC 12-24V |
| Standby Current: | ≤35mA |
| Operating Current: | ≤100mA |
| Operating Temperature: | -40℃~ 60℃ |
| Operating Humidity: | 0% ~ 95% |
| Access Ways: | Fingerprint, card, code, or multiple combination methods |
| IP68 Waterproof | Optional |

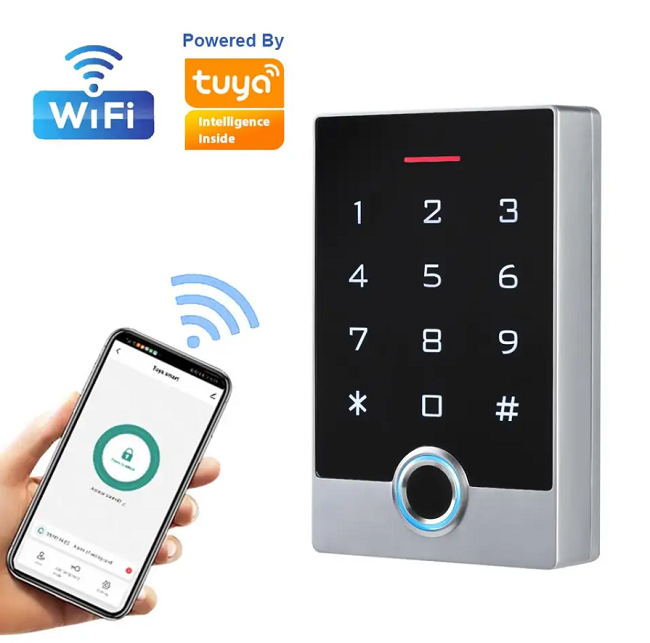

| Wifi ( Tuya App) | Optional |
3. Fingerprint Access Controller Diagram

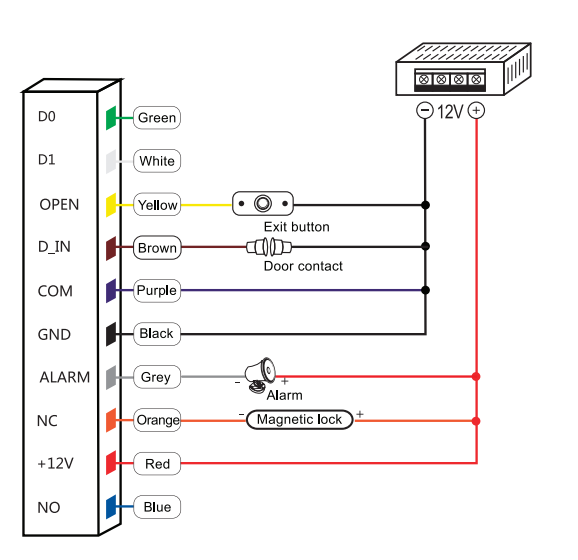

3.1 Common Power Supply

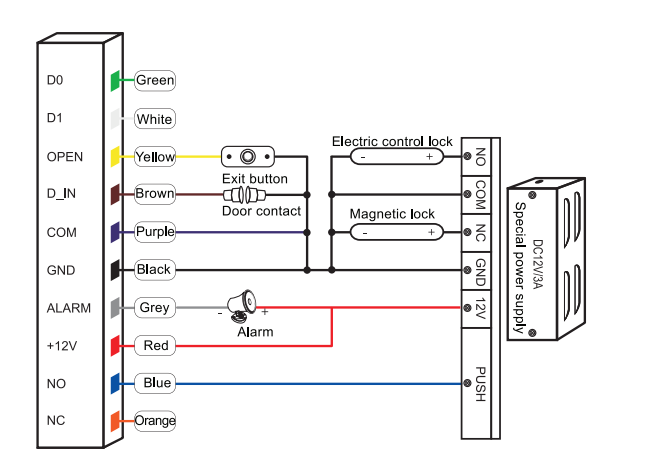

3.2 Special Power Supply

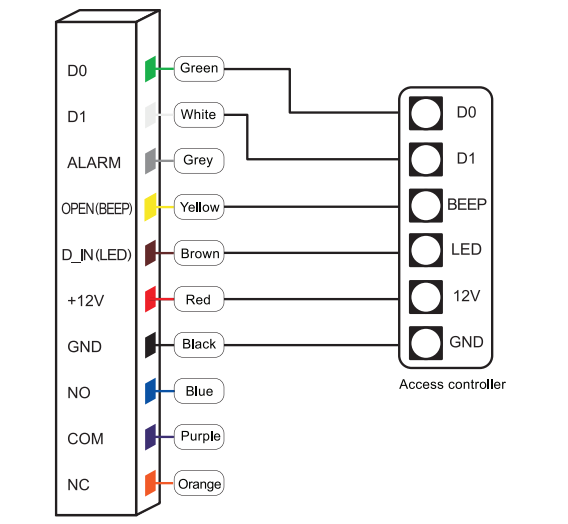

3.3 Reader Mode
