UHF RFID Long Range Reader 10-15 Meters

Description

UHF RFID High Performance Integrated Reader Long Range 10-15 Meters

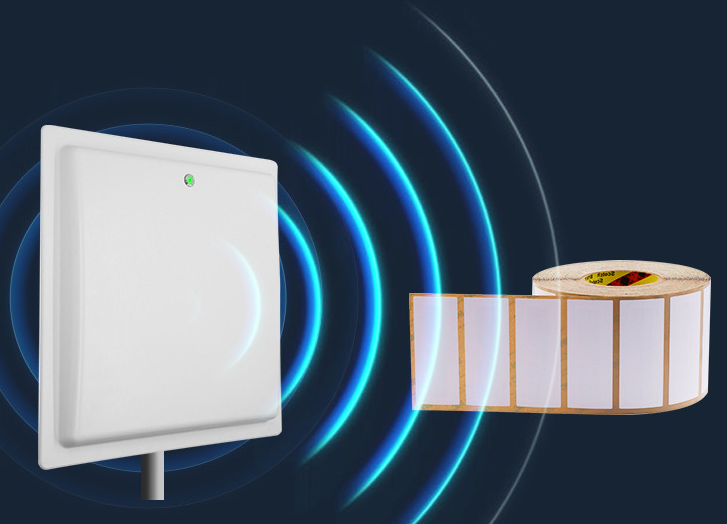

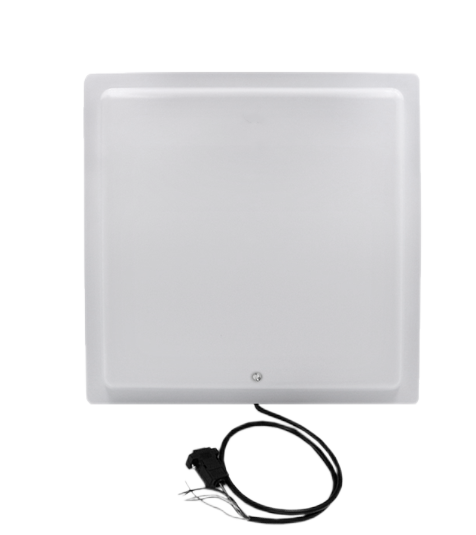

LR46 is a High Performance UHF integrated reader for long range operation. Compact Reader with integrated 12dBi linear polarized UHF Far Field antenna,.Based on proprietary efficient digital signal processing algorithm,the reader is capable of up to 15m Read Range and 6m Write Range.

UHF Long Range Reader Application fields:

Logistics and warehousing management: item flow and warehousing management, as well as flow management of mail, parcels, transport luggage, etc.;
Intelligent parking lot management: parking lot management and charging automation;
Production line management: identification of fixed points in the production process;
Product anti-counterfeiting detection: Use the write protection function of the memory in the label to identify the authenticity of the product;
Other fields: It has been widely used in club management, library, student registration, consumption management, attendance management, dining management, swimming pool management and other systems.

UHF Reader Features:

1. Low power, stable and reliable reading and writing distance;
2. Fast data read rate;
3. Tag wake-up recognition;
4. Multi-region and multi-label reading;
5. Multi-protocol compatible;

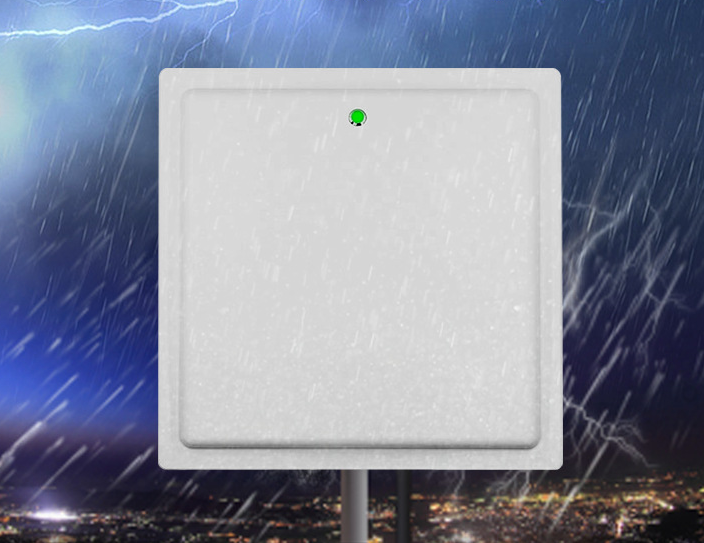

6. Waterproof appearance design;

UHF Reader Specifications:

Frequency Range	902-928Mhz (FCC by default),865-868Mhz (CE OEM)
Reading Range	10-15m, Tag/lable & Environment Dependent
Protocols	ISO18000-6C (EPC Class 1 Gen2)/ISO18000-6B
Work Mode	Hopping(FHSS) & Fixed Frequency
RF Power	0~30 dBm, Adjustable Set ( Software)

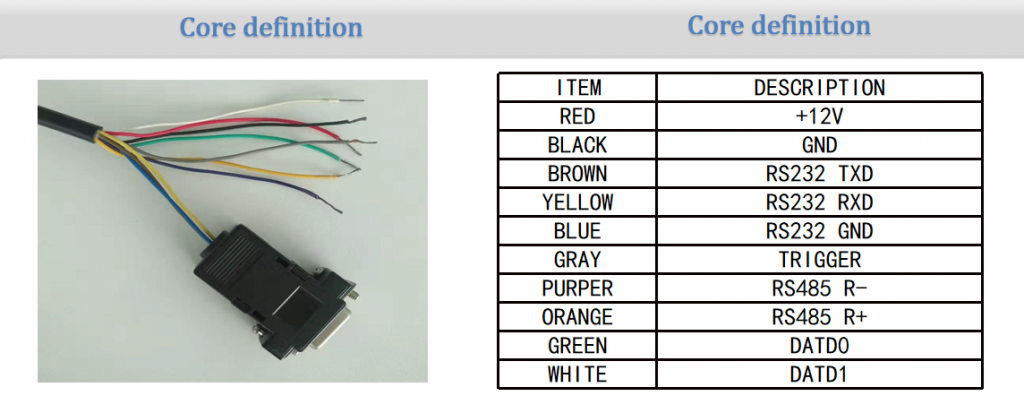

Interface Way	RS485,RS232/UART, Wiegand26/34, TCP/IP(optional)
Antenna	12dBi linearly polarize antenna （Integrated）
Power Supply	+12V
Read Mode	Master‐Slave Mode（Online Mode）、Time Scheduled Modes、Trigger Mode
Operating Temp	-20~+70°C
Storage Temp	-40~+125°C
Weight	5KG

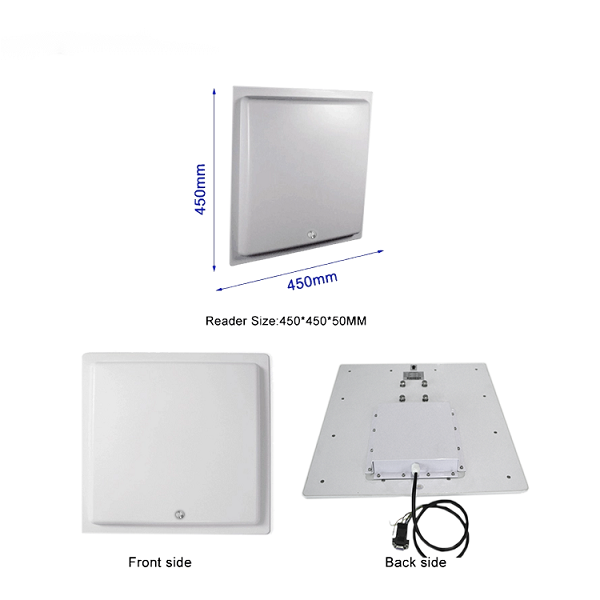

Dimensions	450x450x50mm

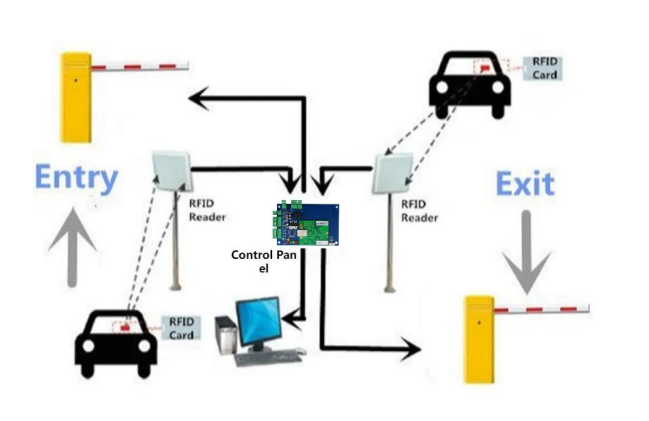

UHF Reader Solution description

1.Install UHF long range reader

2.Reader connect with barrier controller through WG26

3.Use UHF USB desktop writer to authorize tag

4.Install tag on vehicle windshield

5.When vehicle driving close to parking lot,reader can read tag information,barrier will open,after vehicle enter to parking lot,barrier will close,if tag invalid and without authorization,then can’t enter.

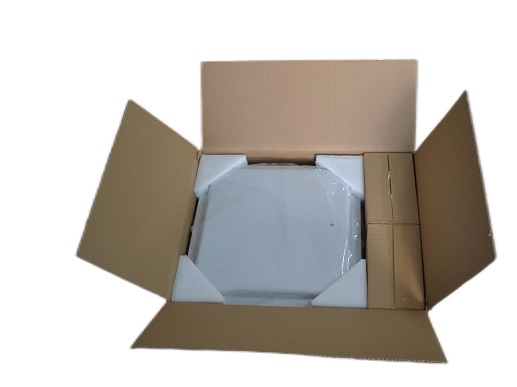

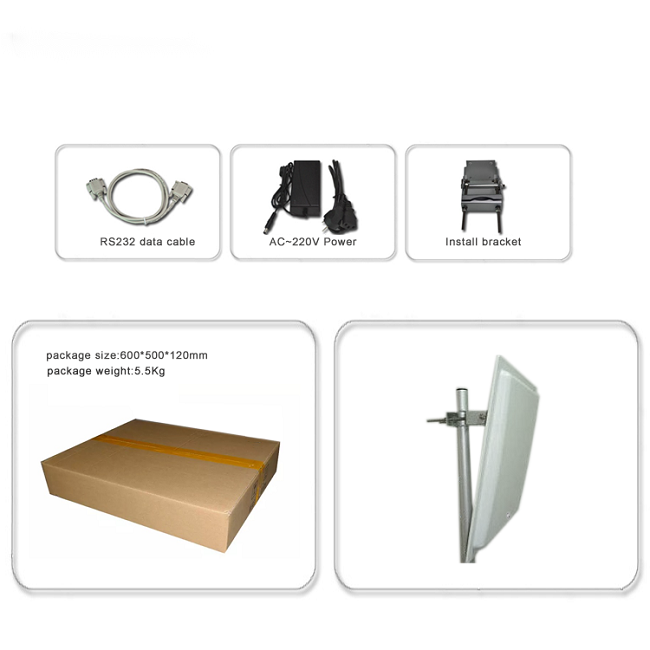

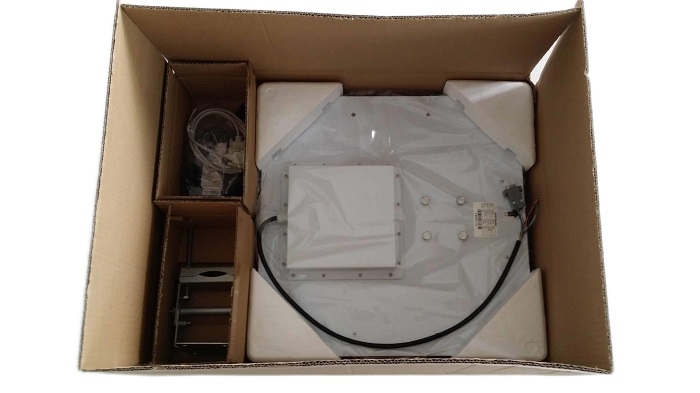

UHF Reader Package
