UHF RFID Long Range Reader 0-6 Meters

Description

UHF RFID High Performance Integrated Reader Long Range 0-6 Meters

LR46 is UHF long range integrated reader design for parking system vehicle access control,with relay,use password mode to match reader and tag control relay release and trigger barrier open,come with demo software and WG26 connection software configuring user manual. It compatible with ISO 18000-6C and ISO 18000-6B standards. Its operating frequency is 902MHz~928MHz. It has a compact appearance and outstanding read and write performance. The reader can be widely used in warehousing logistics management, retail logistics center management, enterprise transportation management and automated production line management and other fields.

UHF Long Range Reader Application fields:

Logistics and warehousing management: item flow and warehousing management, as well as flow management of mail, parcels, transport luggage, etc.;
Intelligent parking lot management: parking lot management and charging automation;
Production line management: identification of fixed points in the production process;
Product anti-counterfeiting detection: Use the write protection function of the memory in the label to identify the authenticity of the product;
Other fields: It has been widely used in club management, library, student registration, consumption management, attendance management, dining management, swimming pool management and other systems.

UHF Reader Features:

1. Low power, stable and reliable reading and writing distance;
2. Fast data read rate;
3. Tag wake-up recognition;
4. Multi-region and multi-label reading;
5. Multi-protocol compatible;

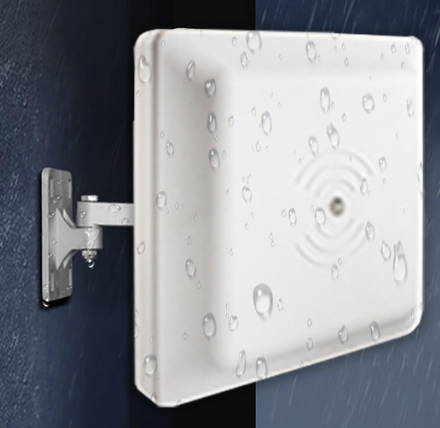

6. Waterproof appearance design;

UHF Reader Specifications:

Frequency Range	902-928Mhz (FCC by default),865-868Mhz (CE OEM)
Reading Range	0-6 m, Tag/lable & Environment Dependent
Protocols	ISO18000-6C (EPC Class 1 Gen2)/ISO18000-6B
Work Mode	Hopping(FHSS) & Fixed Frequency
RF Power	0~30 dBm, Adjustable Set ( Software)
Interface Way	RS485,RS232/UART, Wiegand26/34, TCP/IP(optional)
Antenna	Built-in 8dBi Circularly/ vertical Polarized Antenna
Power Supply	+12V, 350-650mA
Read Mode	Active,Command,Trigger Working Mode
Operating Temp	-20~+70°C
Storage Temp	-40~+125°C
Weight	2.5KG

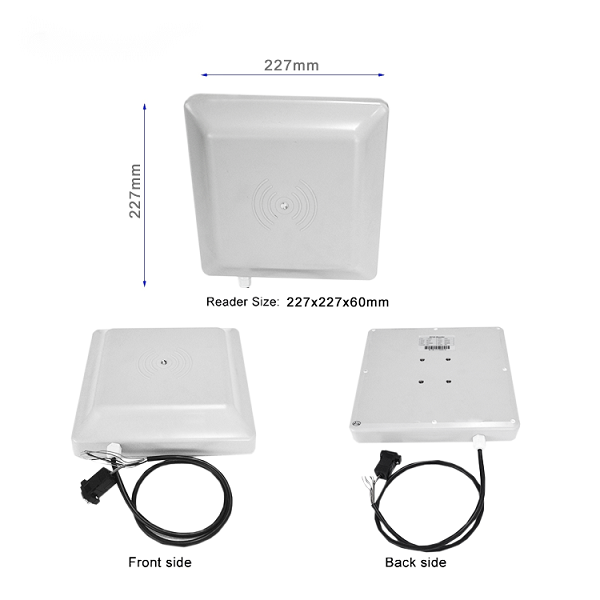

Dimensions	227x227x60mm



UHF Reader Solution description

1.Install UHF long range reader

2.Reader connect with barrier controller through WG26

3.Use UHF USB desktop writer to authorize tag

4.Install tag on vehicle windshield

5.When vehicle driving close to parking lot,reader can read tag information,barrier will open,after vehicle enter to parking lot,barrier will close,if tag invalid and without authorization,then can’t enter.
