UHF RFID Long Range Reader 0-10 Meters

Description

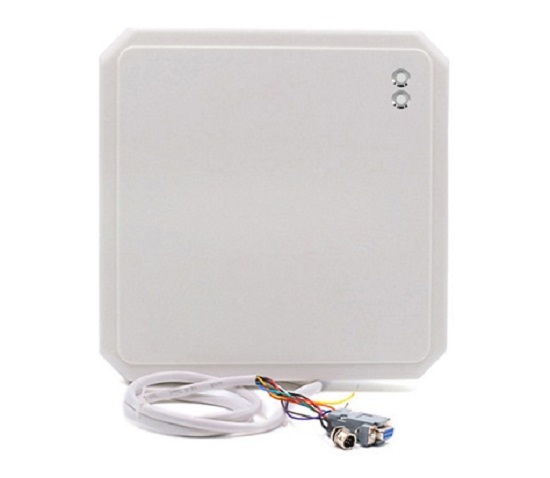

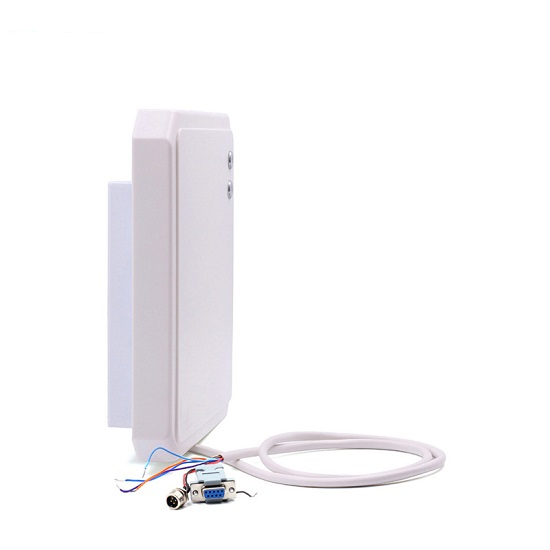

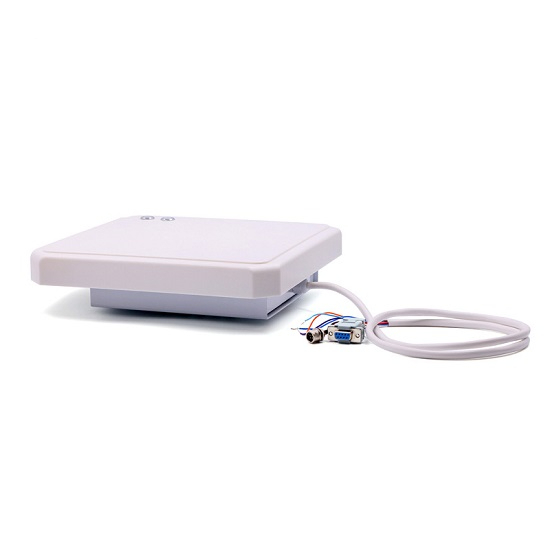

UHF RFID High Performance Integrated Reader Long Range 0-10 Meters

LR610 is UHF middle range integrated reader design for parking system vehicle access control,with relay,use password mode to match reader and tag control relay release and trigger barrier open,come with demo software and WG26 connection software configuring user manual.



Free switching of various working modes
1. Active mode: Active card reading after the device is powered on
2. Answer mode: send commands in the background to control the device to read the card
3. Trigger mode: external device low level trigger device to read card



UHF Reader Features:

1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. Built-in 9dbi circular antenna,with effect distance up to 0m~10m;
7. Support active mode,answer mode,trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485, Wiegand interface;
10. With two sets relay

UHF Reader Specifications:

Frequency Range	902-928Mhz (FCC by default),865-868Mhz (CE OEM)
Reading Range	0-10 m, Tag/lable & Environment Dependent
Protocols	ISO18000-6C (EPC Class 1 Gen2)/ISO18000-6B
Work Mode	Hopping(FHSS) & Fixed Frequency
RF Power	0~30 dBm, Adjustable Set ( Software)
Interface Way	RS485,RS232/UART, Wiegand26/34, TCP/IP(optional)
Antenna	Built-in 9dBi Circularly/ vertical Polarized Antenna
Power Supply	+12V, 350-650mA
Read Mode	Active,Command,Trigger Working Mode
Operating Temp	-10~+55°C
Storage Temp	-20~+75°C
Weight	2.5KG

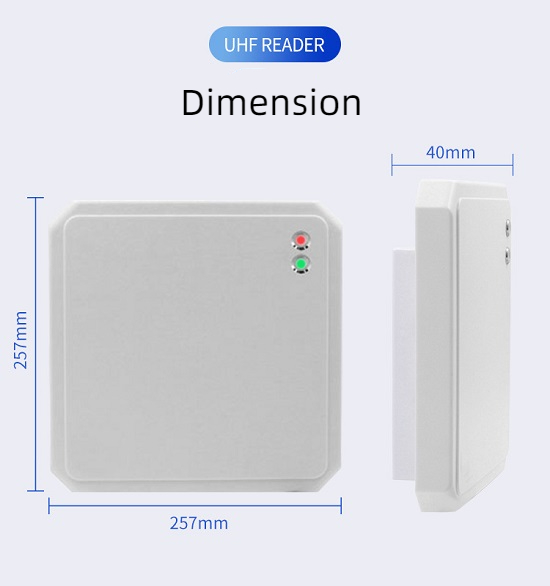

Dimensions	257x257x40mm

UHF Reader Application feature

1. Access to automatic access, no need hand scan cards.
2. Convenient installation, low cost, no need software installation, security and reliable
3. Only need UHF long range reader and barrier can let it come true.

UHF Reader Solution description

1.Install UHF long range reader

2.Reader connect with barrier controller through WG26

3.Use UHF USB desktop writer to authorize tag

4.Install tag on vehicle windshield

5.When vehicle driving close to parking lot,reader can read tag information,barrier will open,after vehicle enter to parking lot,barrier will close,if tag invalid and without authorization,then can’t enter.
