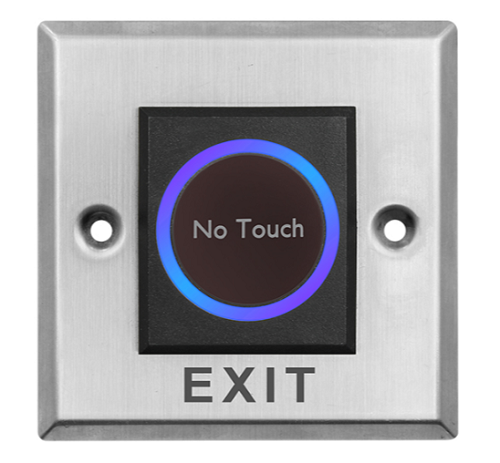

Touchless Door Exit Button
Dimension (mm): 86L*86W*16H
Power: DC12-24V

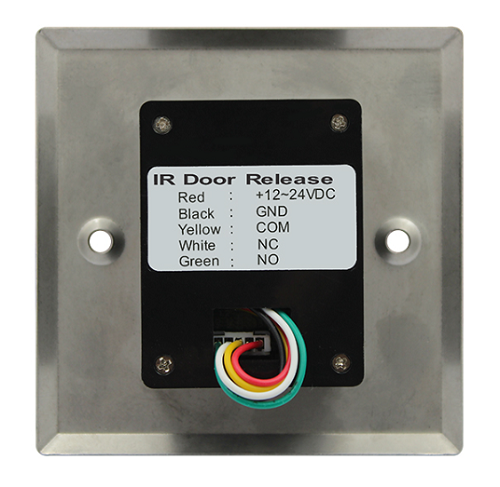

Output Contact: NO/NC/COM
Sensitive Distance: 5-15cm （ adjustable ）

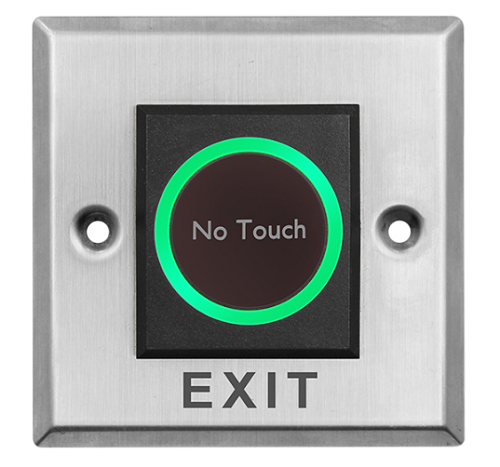

LED Indicator: Standby blue, Response green
Material: Stainless steel
Panel logo: Customizable
Hollow door frame installation
Description
Infrared induction Door Exit Button NO/NC/COM
Infrared sensor exit switch is a new non-contact switch sensor design, with two-color LED indicator light, especially suitable for dark places, the interactive design of light touch response can better prompt users. The use of infrared induction touchless buttons can reduce the chance of contact cross-infection in public places. Since the impact of epidemic, people have more and more demand for contactless buttons.
Specifications for No Touch Door Exit Button
| Item Name: | IR No Touch Button | |
| Model: | BNT2 | BNT10 |
| Dimension: | 86L*86W*16H(mm) | 115L*70W*16H(mm) |
| Power Supply: | DC12V or 24V | |
| Material: | Stainless steel | |
| Output Contact: | NO/ NC/ COM | |
| Sensitive Distance: | 0-10 cm ( Adjustable ） | |
| Mechanical Life: | 500,000 Tested | |
| Panel Logo: | Logo can be customized according to clinet’s requirment | |
| LED Indicator: | 2 colors , Standby blue, response green | |
| Operating Temp: | -20℃~+55℃(14-131F) | |
| Operating Humidity: | 0-95% | |
| Door Type: | Hollow door frame installation | |

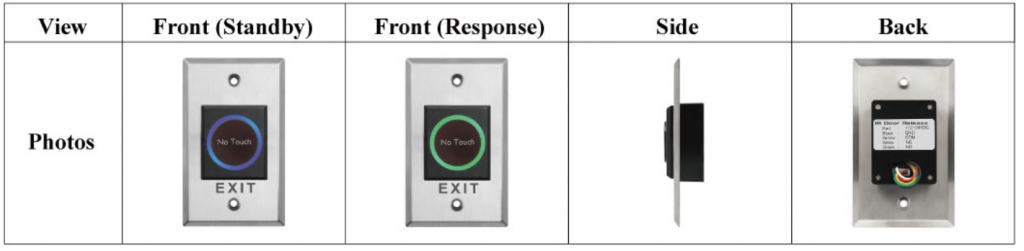

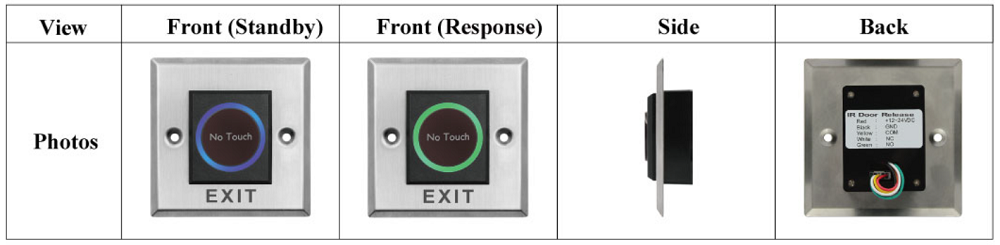

Product pictures for different size Touchless Door Button

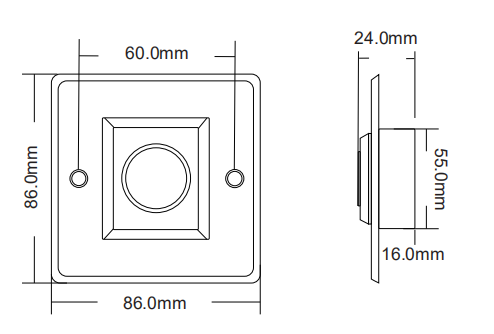

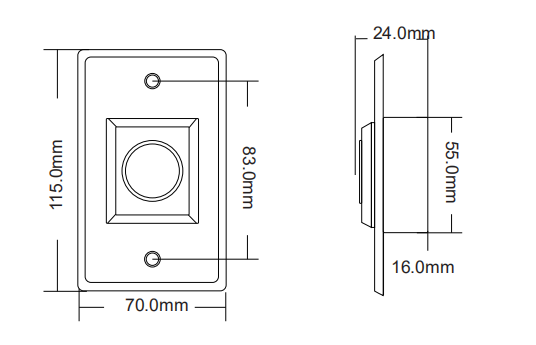

Dimension for Touchless Door Exit Button

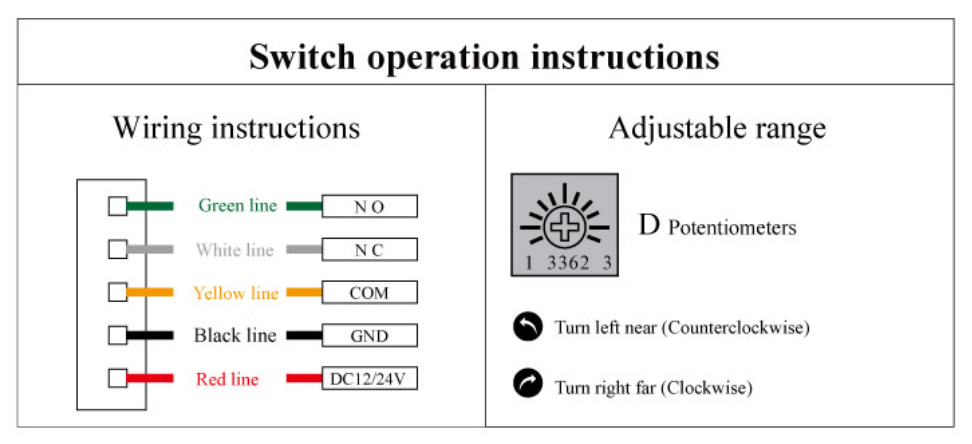

Operation instructions of No Touch Button
