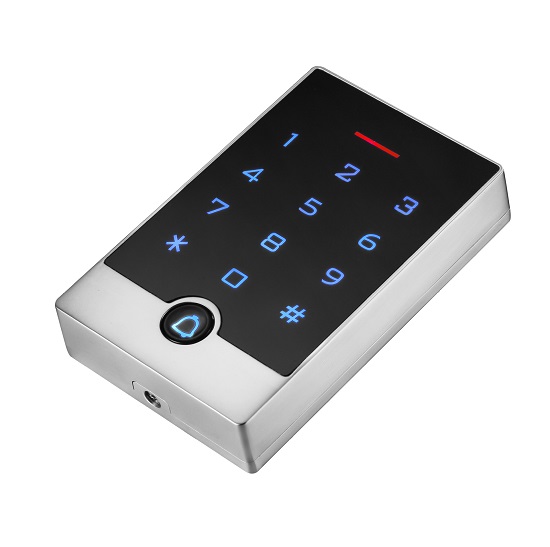

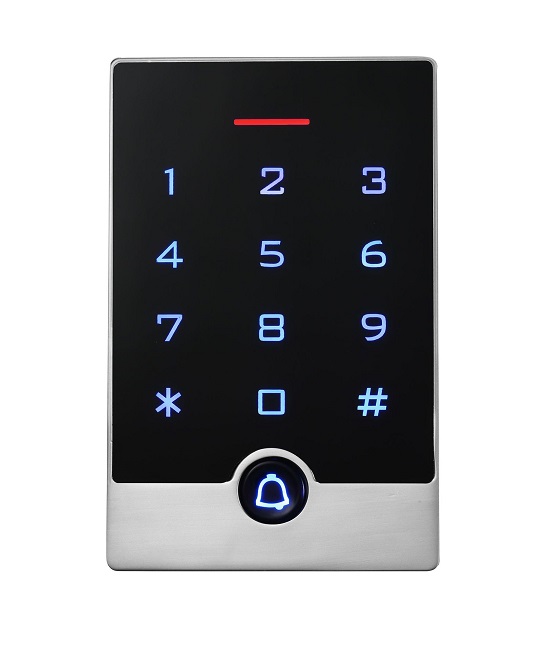

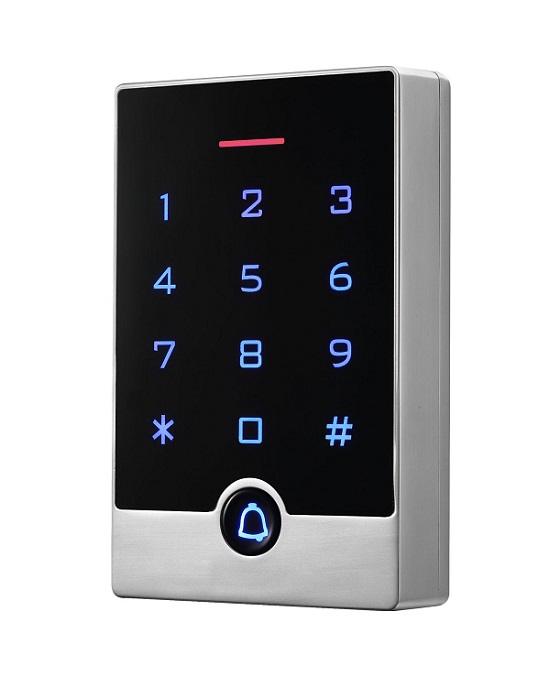

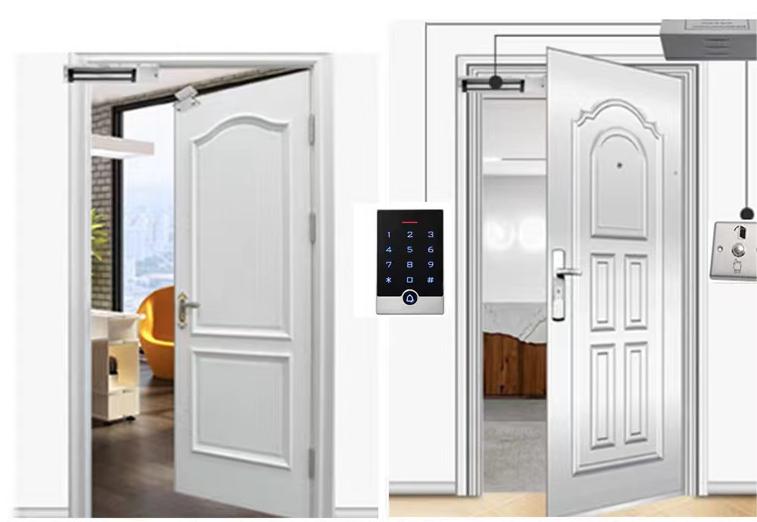

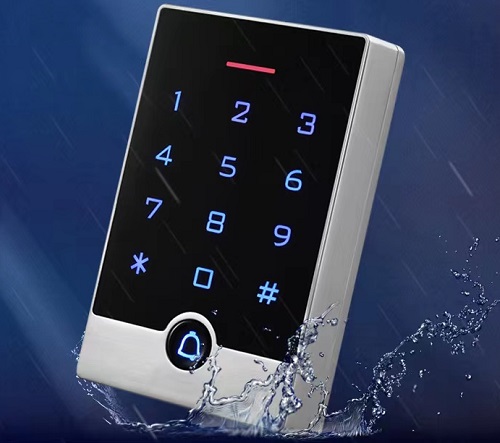

Stand Alone Touch Type Access Controller
Model:T15 series
2000 User or Pin, Weigand 26 out/in
EM/ID 125khz or Mifare/IC 13.56mhz Reader Built in
Entry Mode:Card/Card+Pin/Pin
Description
Keypad Access Controller with RFID Reader Build in
The device is a standalone access control and proximity card reader which supports EM 125khz & MF 13.56mhz card types. It builds-in STC micro processor, with strong anti-interference ability,high security and reliability,powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places.
1.Access Controller Features:
| Ultra-low Power | Standby current is less than 30mA |
| Wiegand Interface | WG26 or WG34 input and output |
| Searching time | Less than 0.1s after reading card |
| Backlight keypad | Operate easily at night |
| Doorbell interface | Support external wired doorbell |
| Access ways | Card, Pin code, Card & Pin code |
| Independent codes | Use codes without related card |
| Change codes | Users can change codes by themselves |
| Delete users by card No | The lost card can be delete by keyboard |
2.Access Controller Specifications
| Working Voltage: | DC12-24V |
| Standby Current: | ≤30mA |
| Card Reading Distance: | 1～3cm |
| Capacity: | 2000 users |
| Working Temperature: | -40℃～60℃ |
| Working Humidity: | 10%～90% |
| Lock output load: | ≤3A |
| Waterproof IP68 | Optional |
3.Access Controller Installation

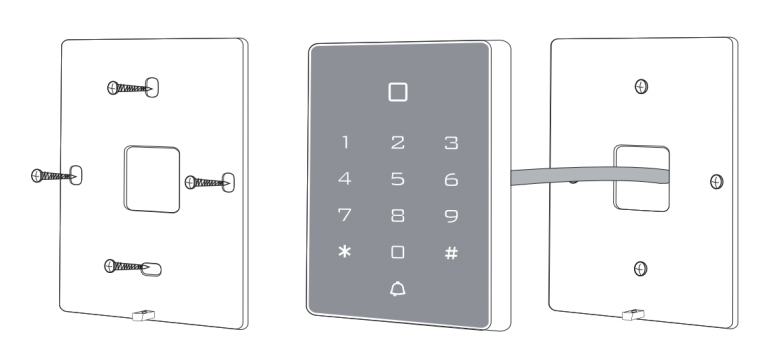

Drill hole according to the size of the device and fix the back shell with the equipped screw.Thread the cable through the cable hole. connect the wires according to your required function, and wrap the unused wires to avoid short circuit. After connecting the wire, install the machine. (as show below)
4.Access Controller Diagram

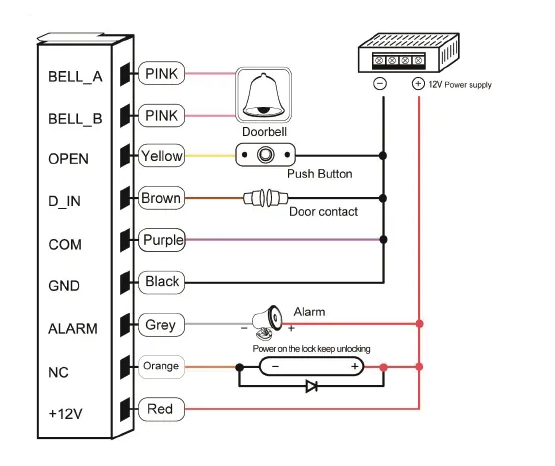

4.1 Common Power Supply

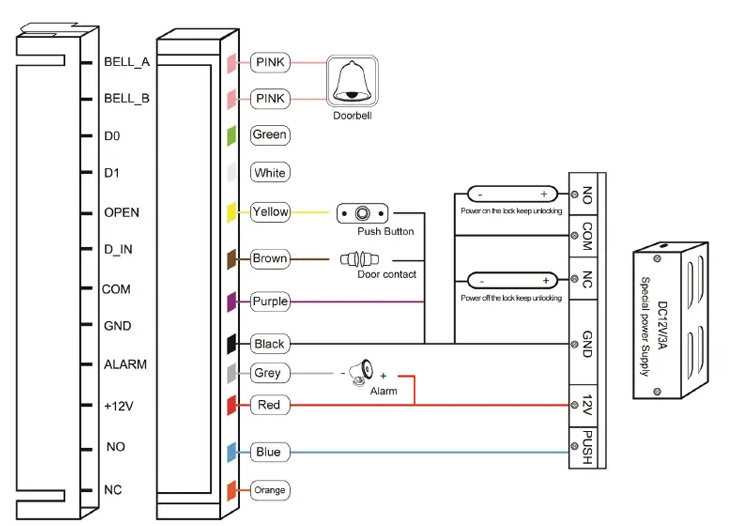

4.2 Special Power Supply
4.3 Reader Mode
