Description

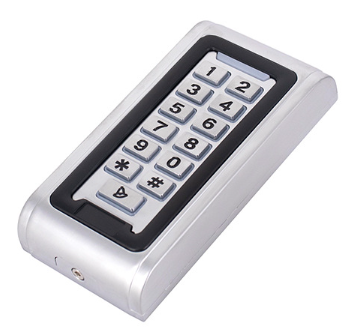

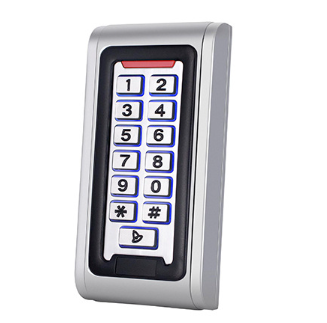

Access Controller with Card Reader Build in
Stand Alone Access Controller With Card Reader Build in, we also call it keypad controller for single door with multi functions.
It can be used both indoor and outdoor , as it is IP68 waterproof standards.
Using access cards such as EM 125khz and IC 13.56Mhz or password or a combination of both for access.
It can control the Electrc Lock , Alarm System , Door Bell and also can connect with Door Exit Button and Door Contact.
Specifications for the Access Controller
| Product name: | Stand Alone Access Controller with Card Reader Build in |
| Application: | Access Control System indoor and outdoor |
| Operating Voltage: | 12-24V DC 1.2A |
| User Capaticy: | 2000 users or pin |
| Wiegand Type: | WG26 out/in (can be used as weigand reader to controller, connect extra reader) |
| Card Frequency: | ID 125KHZ or IC 13.56MHZ |
| Entry Mode: | Card/ Pin code/ Card+Pin code |
| Weight: | 550g |

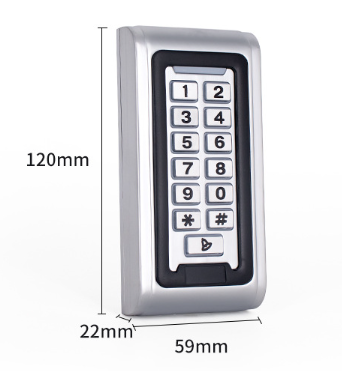

| Dimensions: | 120mm×59mm×22mm |
| Card Reading Distance: | 3-6cm |
| Environment: | IP68 Waterproof |
| Material: | Metal case Zinc Alloy |
| Keyboard: | Back blue LED light for night use accessibility |

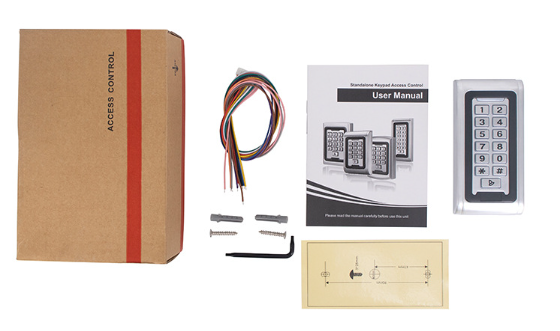

Product Package

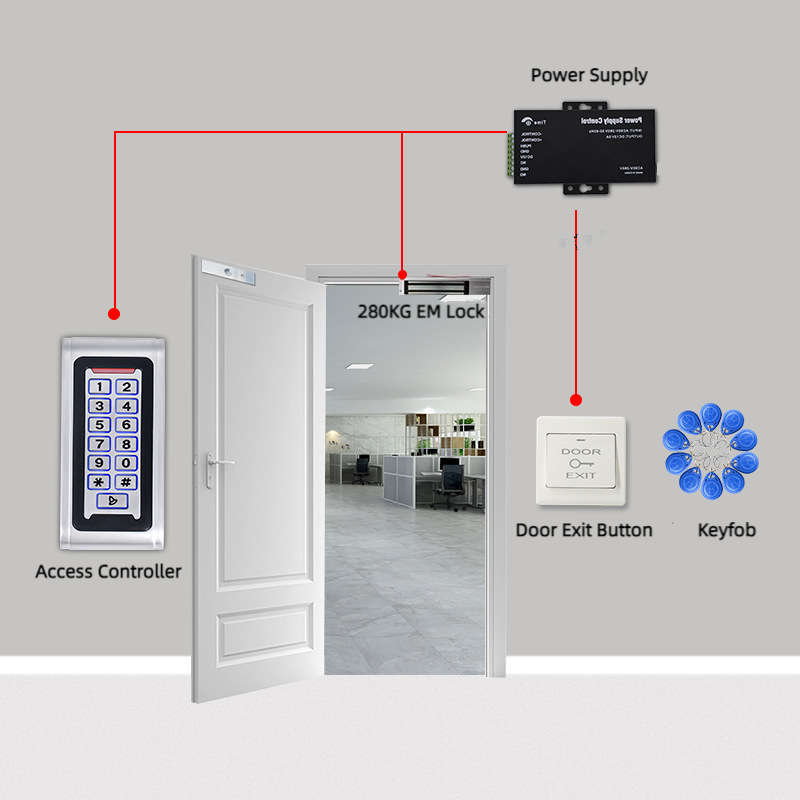

Wiring Diagram
