Stainless Steel NO COM Door Button Exit Button

Description

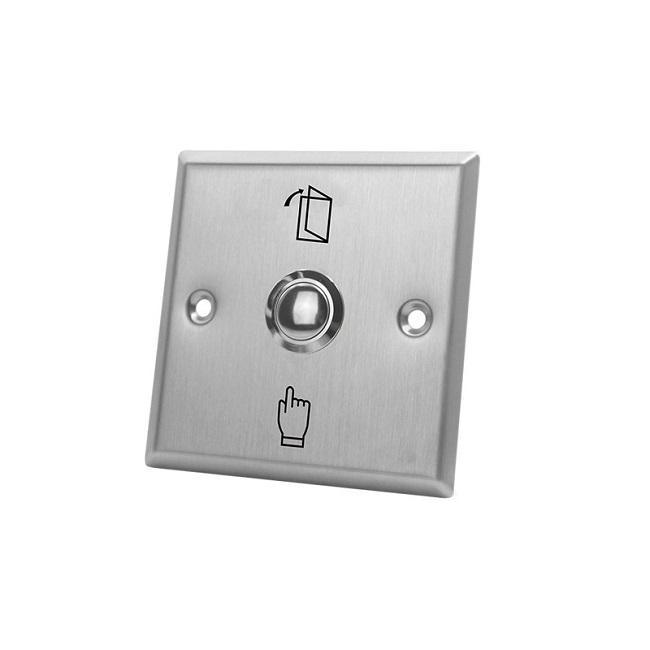

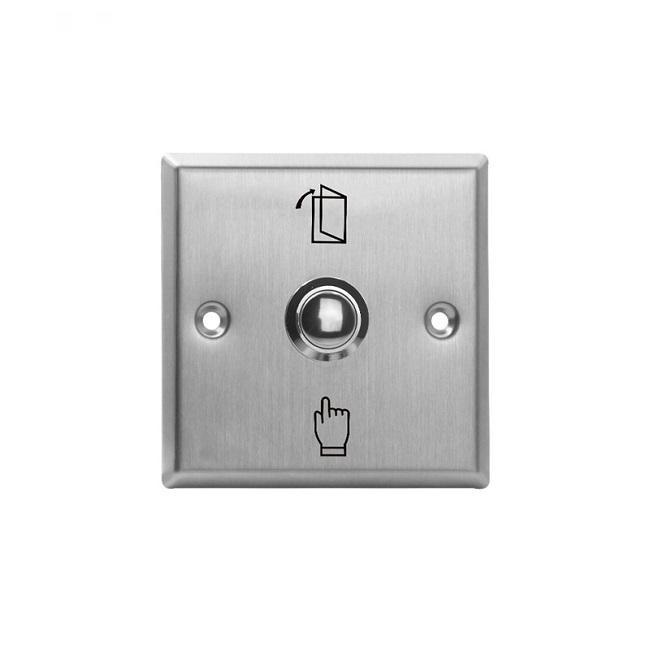

Stainless Steel NO COM Door Button Exit Button

The switch button plays a very important role in the access control system, we need to install the button in the system to control the door to open and close.

Material for the door button

Switch buttons come in a variety of materials and size,material including plastic, stainless steel, aluminum alloy, waterproof buttons, and more.

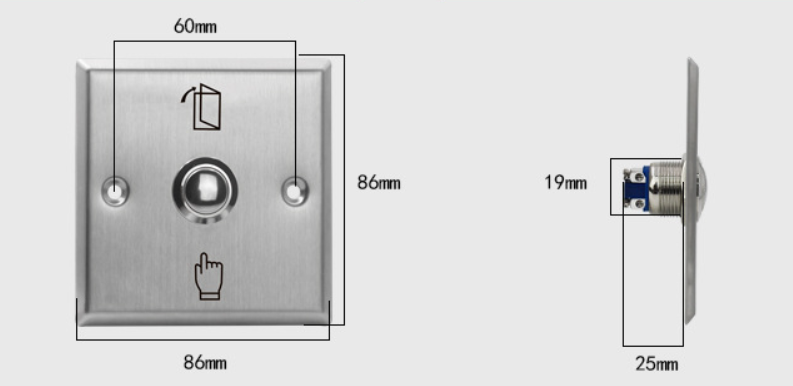

Size of of door exit button

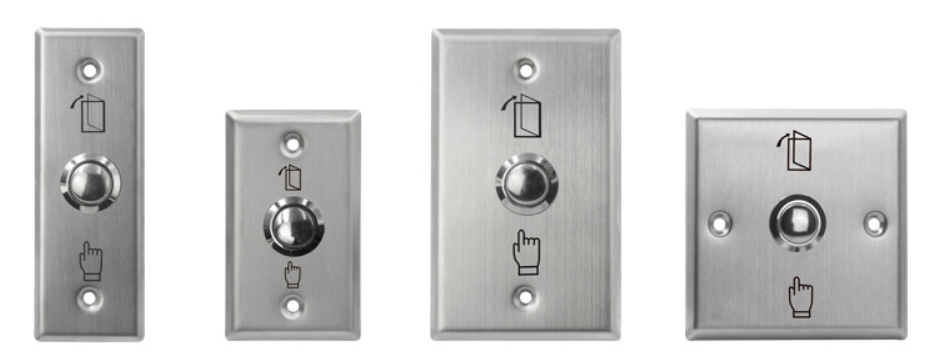

Let’s introduce the stainless steel switch button. The stainless steel switch button has several different sizes as below.

115L*40W*25H                    86L*50W*25H                             115L*70W*25H                                86L*86W*25H mm



Item Model#	MB40	MB50	MB70	MB86
Door button dimension(mm)	115L*40W*25H	86L*50W*25H	115L*70W*25H	86L*86W*25H
Operating Voltage	DC12V
Contact output	NO/COM or NO/NC/COM
Panel material	Stainless steel
panel pattern/logo	Can be customized according to customer requirements
Durability Test	500,000 times of use test qualified
Proper temperature	-20℃~+55℃(-4-131F)
Applicable humidity	0-95%
Weight	0.125kg/pcs
Dimension of the box	132L*94W*48H mm



Package of the door button
