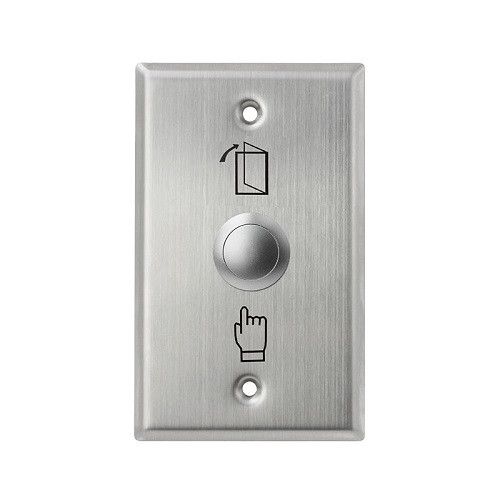

Stainless Steel Door Button Exit Button

Stainless Steel Door Button

Model:MB70

Dimension:115*70*25 mm

DC12V , NO/COM or NO/NC/COM

Category: Tag:

Description

Stainless Steel Door Button Exit Button

The switch button plays a very important role in the access control system, we need to install the button in the system to control the door to open and close.

Material for the door button

Switch buttons come in a variety of materials and size,material including plastic, stainless steel, aluminum alloy, waterproof buttons, and more.

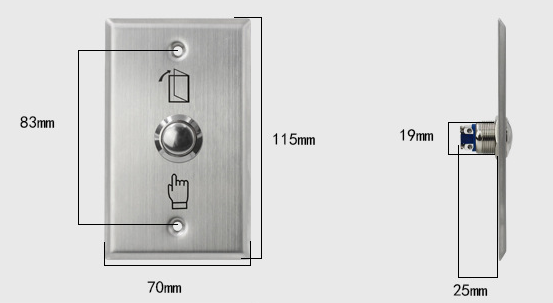

Size of of door exit button

Let’s introduce the stainless steel switch button. The stainless steel switch button has several different sizes, such as 115L*40W*25H, 86L*50W*25H, 115L*70W*25H, 86L*86W*25H mm.

115L*40W*25H                    86L*50W*25H                             115L*70W*25H                                86L*86W*25H mm



Item Model# MB40 MB50 MB70 MB86
Door button dimension(mm) 115L*40W*25H 86L*50W*25H 115L*70W*25H 86L*86W*25H
Operating Voltage DC12V
Contact output NO/COM or NO/NC/COM
Panel material Stainless steel
panel pattern/logo Can be customized according to customer requirements
Durability Test 500,000 times of use test qualified
Proper temperature -20℃~+55℃(-4-131F)
Applicable humidity 0-95%
Weight 0.125kg/pcs
Dimension of the box 132L*94W*48H mm

Package of the door button
