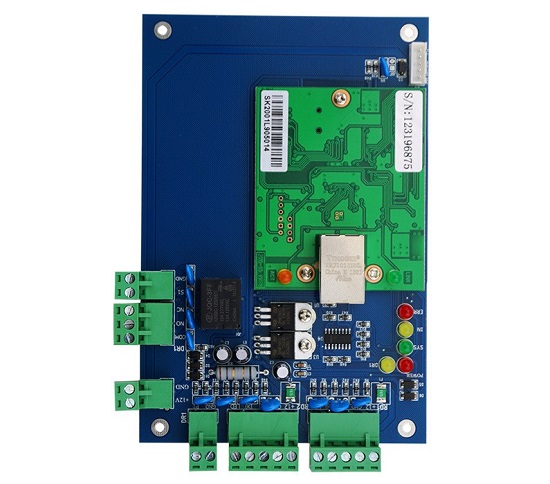

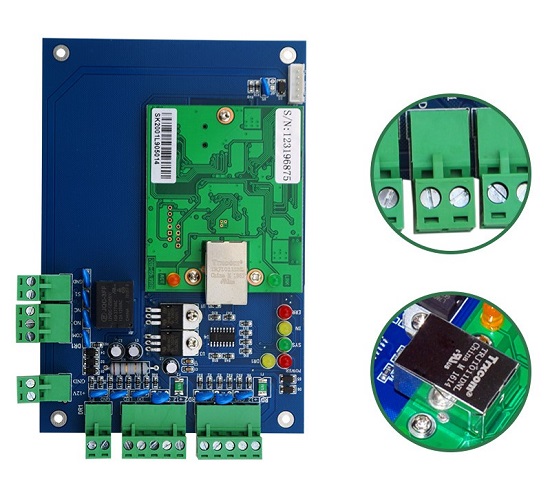

Single Door Access Control Panel TCP Control Board

Description

Access Control Board Single Door Wiegand TCP Network Access Controller with Free SDK

w01.net access control panel is a device that combines the most advanced chip technology and communication mechanism. Single door access control panel, connected to 2 readers WG input, it has 20,000 users and 100,000 records, with simple attendance function, anti-passback, It can be connected to the alarm output and fire alarm input of the intermodal board. Transfer data stored in the controller to a computer and print an activity report whenever needed. Each controller works independently and keeps its own database.

Access Control Panel Specifications:

Item:	Single Door Access Control Panel
Model:	w01.net

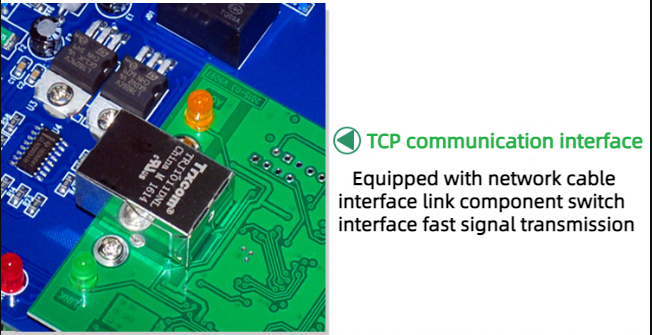

Communication Method:	TCP/IP 10M/100M self adaptive, Webserver
Number of User Registration Cards:	40,000 card permissions
Record the Number of Standalone Storage:	100,000 storage records
Reader Input Format:	Wiegand 26
Function Description:	Control 1 door, enter via card swiping and exit via card   swipping or button
Quantity of Reader:	2
Can control the door output relay:	1
Door Open delay time:	1-600 seconds adjustable
Maximum number of connections:	No limite
Operating Temperature:	-40℃ to 70℃
Operating Humidity:	10-90% RH, non-condensing
Power Supply:	12VDC 4-7A
Maximum distance from card reader to controller:	100 meters, within 80 meters is recommended.
Controller-to-controller maximum distance:	TCP/IP communication method: depends on the network coverage.
Fire linkage Alarm linkage:	If the expansion board is not connected, it only has an alarm prompt on the software interface, and drives the computer speaker to give an alarm. If the alarm expansion linkage board is connected, it has the hardware alarm output function, and if the reinforced expansion board is connected, it also has the anti-theft alarm function.

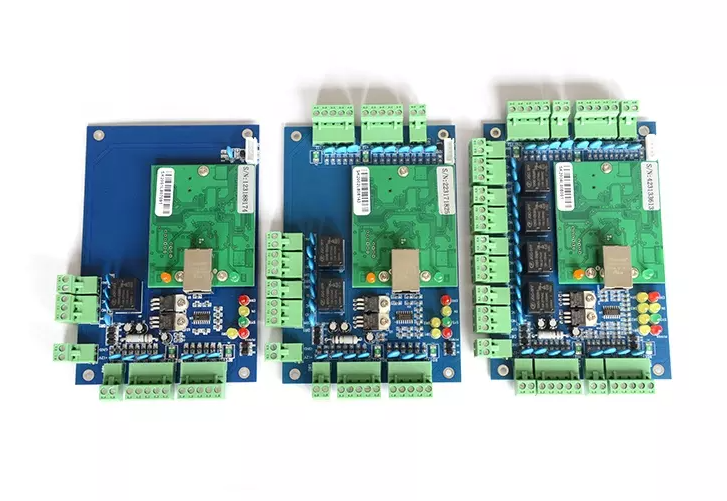

More models for Access Control Panel : w01.net  ,   w02.net  , w04.net

w01.net one door control panel, Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button;

w02.net two doors control panel, Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button;

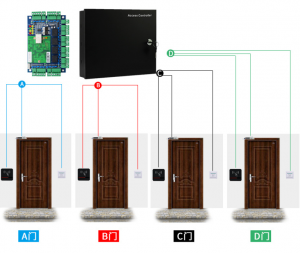

w04.net four doors control panel, Control 4 doors, get in the door by swiping card, and get out door by button

w01.net one door control panel

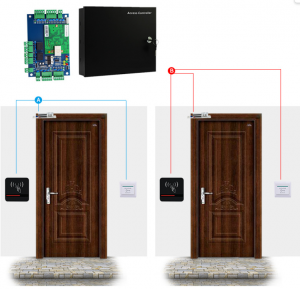

w02.net two doors control panel

w04.net four doors control panel



Please kindly contact the sales Dpt for more details about w01.net , w02.net , w04.net .
