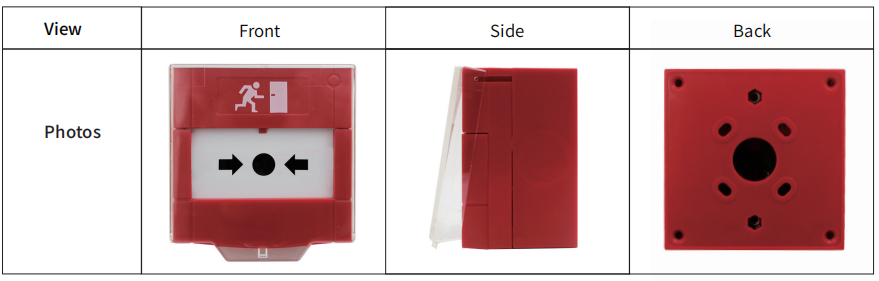

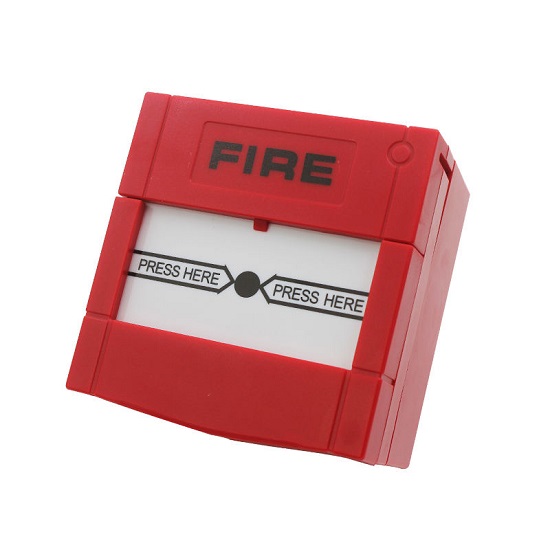

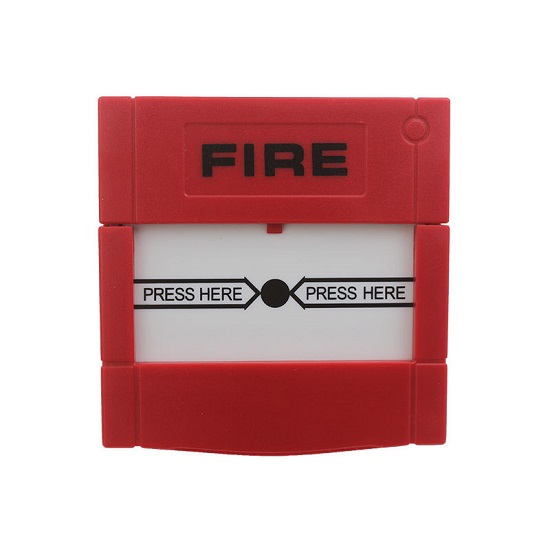

Dual Contacts Resettable Emergency Fire Alarm Call Point

Description

Resettable Fire Alarm Emergency Call Point Door Release Button

A Resettable Fire Alarm Emergency Call Point is a device that is used to alert people to a fire emergency and to call for help. These devices are typically installed in public buildings, such as schools, hospitals, and office buildings, as well as in other locations where people may need to quickly and easily call for help in the event of a fire.

Resettable fire alarm emergency call points are designed to be easy to use and highly visible. They typically have a large, clearly marked button that can be pressed to initiate an alarm. When the button is pressed, the device sends a signal to the building’s fire alarm system, activating the alarm and alerting people to the emergency. The device may also send a signal to a central monitoring station or to the local fire department, summoning help.

After the alarm has been triggered, the call point can be reset by pressing a reset button or by following a specific sequence of steps. This allows the device to be used again if needed, while also helping to prevent false alarms.

Model:ER86R

Model:RE-911

What is 1 pole and 2 pole in Emergency Resettable Door Release Button?

Single pole, NO/NC/COM normally open and normally closed output

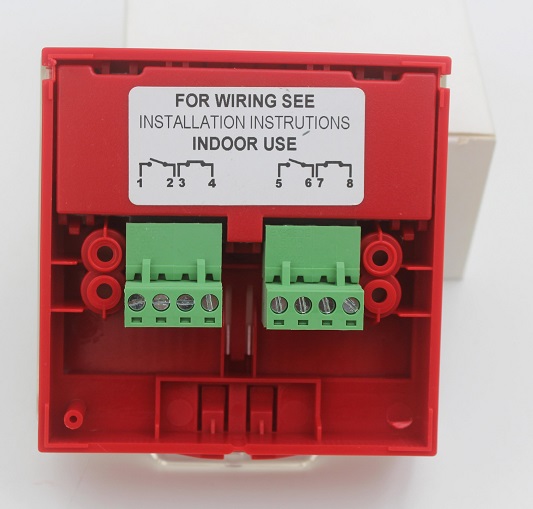

Double-pole model, 2NO/2NC/2COM, two sets of normally open and normally closed output

Usually Double Pole Emergency Resettable Door Release Button is more popular in the market.

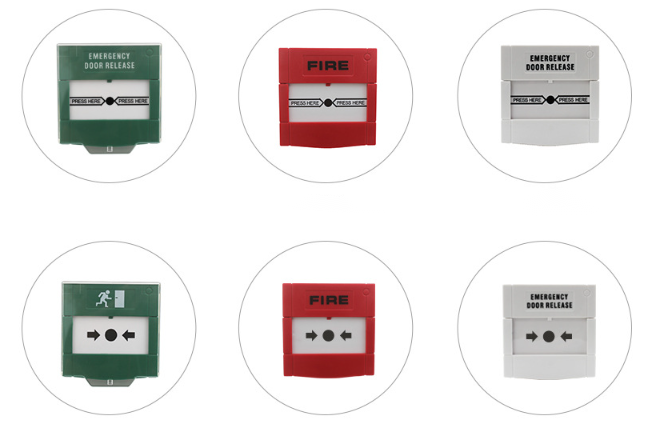

What colors we have for Emergency Resettable Door Release Button ?

We have Green , Red, White for emergency break glass door release button .

Specifications for Emergency Call Point Button:

Item Model# :	ER86R	RE-911
Relay Output:	2NO/ 2NC/2 COM	2NO/ 2NC/ 2COM
Supply voltage:	DC36V, 3A

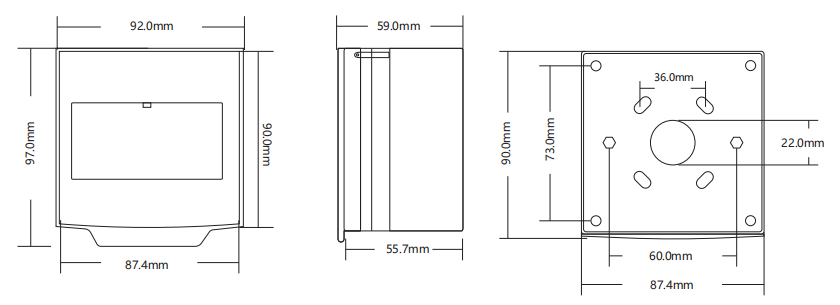

Size:	97L92W59H (mm)
Weight (kg):	0.185
Product material:	ABS
Panel pattern/logo:	can be customized according to customer requirements
Durability test:	500,000 times test
Applicable temperature:	-20℃ ~+55℃ (-4+131F)
Operating humidity:	0-95% (relative humidity)
Packing parameters:	1pcs/box, 100pcs/box (510430330 mm)
