Resettable Emergency Door Release Button
Size(mm)：97L*92W*59H
Power Supply：DC36V，3A
Output Contact：2NO/2NC/2COM
Material：ABS
Panel logo：Customizable logo is available
Description
Resettable Emergency Door Release button Call Point
Resettable Emergency door release button comes with base with test key ,resettable after used.
It is ABS RoHS material, we support customized LOGO pattern printing.
What is 1 pole and 2 pole in resettable emergency door release button ?
Single pole, NO/NC/COM normally open and normally closed output
Double-pole model, 2NO/2NC/2COM, two sets of normally open and normally closed output
Cilents prefer 2 pole in resettable emergency door release button in the market .

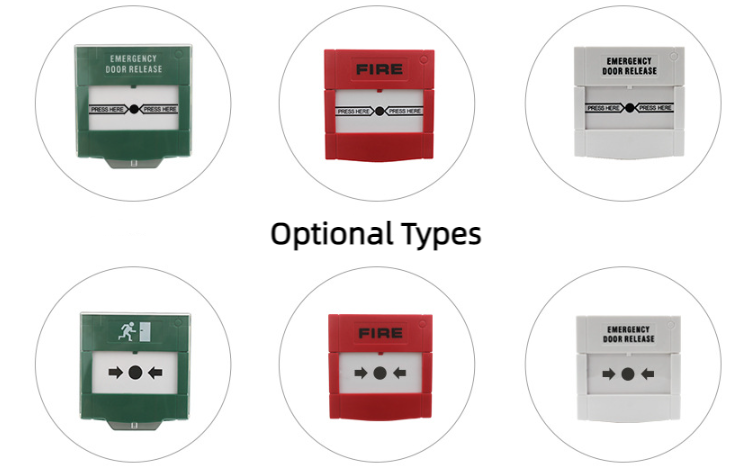

What colors we have for resettable emergency button ?
We have Green , Red, White, Blue, Yellow for emergency door release button .
Usually clients prefer green and red.
Specifications for resettable emergency door release button:
| Item Name: | Resettable Emergency Door Release Button |
| Output Contact : | 2NO/2NC/2COM |
| Power Supply: | DC36V,3A |
| Size(mm): | 97L*92W*59H |
| Material: | ABS |
| Weight(kg): | 0.185 |
| Panel Logo: | Customized is accetable |
| Mechanical Life: | 500,000 Tested aging test qualified |
| Operating Tep: | -20℃ ~+55℃ (-4+131F) |
| Operating humidity: | 0-95% (relative humidity) |
| Package quantity: | 1pcs/box, 100pcs/carton |

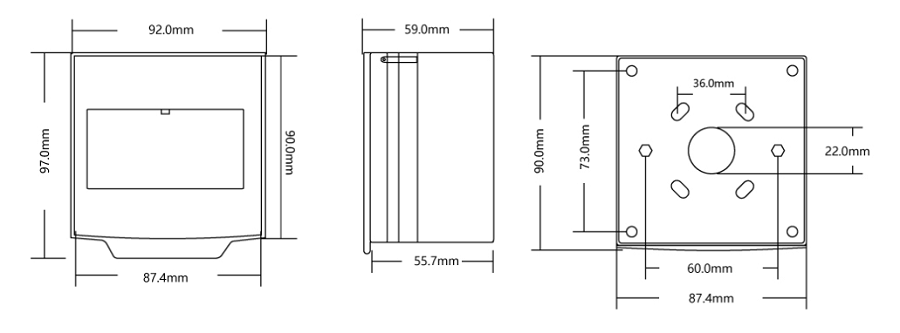

Size / dimension for resettable emergency door release button:

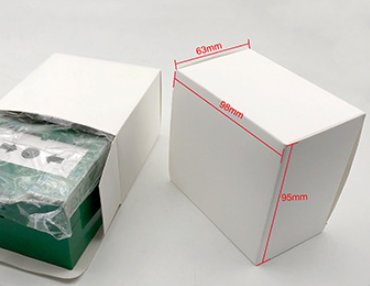

Package for Resettable Emergency Door Release Button
Please kindly contact our sales Dpt for more detail information.
