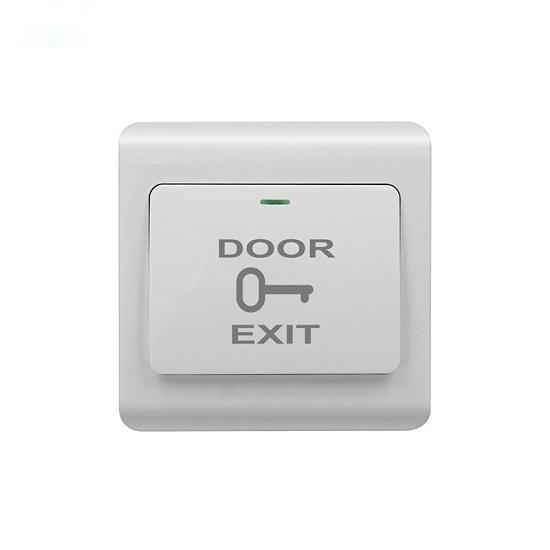

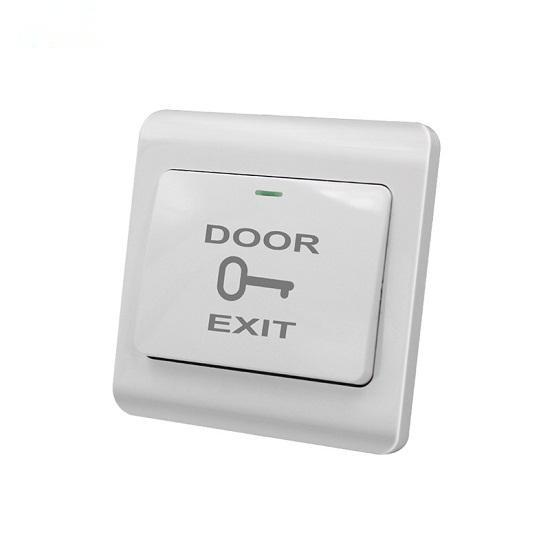

Door Exit Push Button
Model:DB3A
Plastic Material, NO/COM Type
Dimension: 86*86*24mm
3A 24V -10～+55℃
with luminous
Description
Plastic Exit Switch 86 Type Doorbell Reset Button Concealed Mounted
A door exit button is a button or switch that is used to open a door. It is typically located near the door and is used to release the door’s locking mechanism, allowing people to enter or exit a building or room. Door exit buttons are often used in conjunction with other security measures, such as keycards or security codes, to control access to a building or area. Some door exit buttons also have an alarm function that sounds when the door is opened, alerting security personnel to unauthorized access.
Plastic Door Button Specifications:
| Product Size: | 86L*86W*24H(mm) |
| Operating Voltage: | DC 12V |

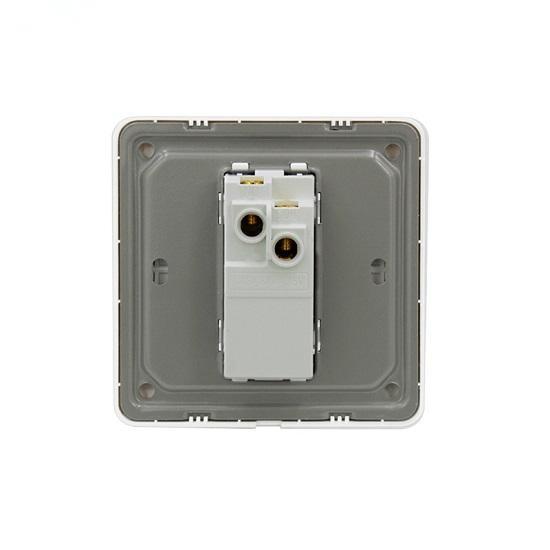

| Contact Output: | NO/COM |
| Product Material: | Plastic |
| Logo: | Can be customized logo according to Client’s requirement |
| Durability Test: | 500,000 times durability test passed |
| Proper Temperature: | -20℃~+55℃(-4-131F) |
| Applicable Humidity | 0-95% |
| With Luminous | Yes |

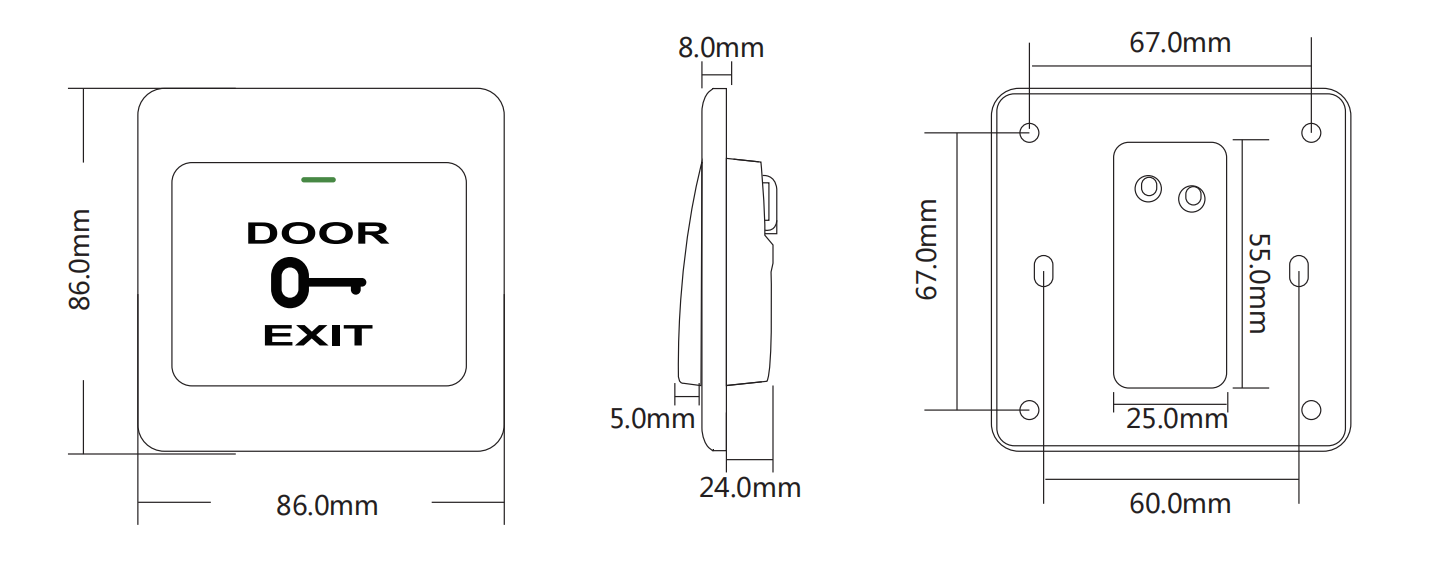

Door Exit Button Size:
Door Button Weight: 0.062kg/pc

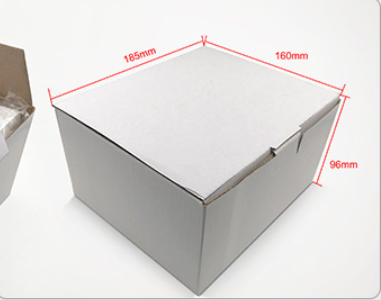

10pcs each box , dimension 185*160*96mm
100pcs each carton
Why Door Buttton so important in Access Control System?
Door buttons are an important part of an access control system because they provide a way for authorized individuals to open a door and gain access to a building or area. Access control systems are used to restrict access to buildings or areas to only authorized individuals, and door buttons are one of the most common ways of controlling access. When an authorized individual approaches a door, they can use the door button to open the door and gain access. This ensures that only authorized individuals are able to enter the building or area, helping to improve security and prevent unauthorized access.
