Model:A10 Access Controller Keypad
1000 User or Pin
Weigand 26 in(can connect one extra reader)
EM/ID Reader Built in

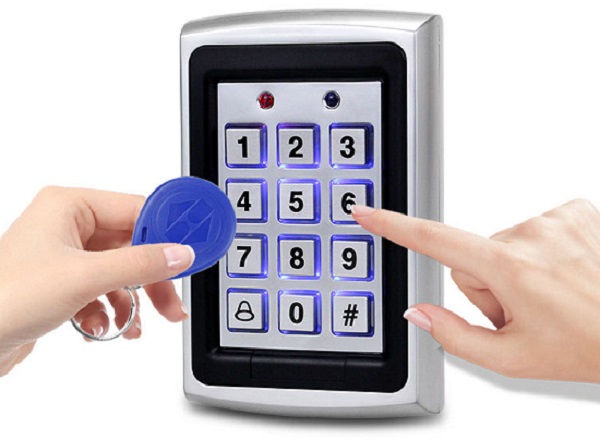

Entry Mode:Card/Card+Pin/Pin
Operating Voltage:12 VDC 1.2A
Surface Waterproof

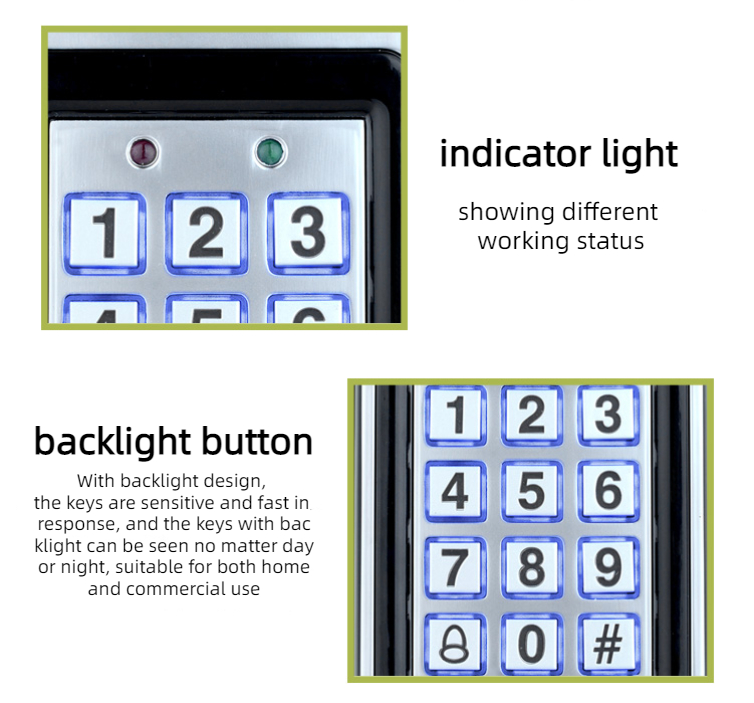

Back Light

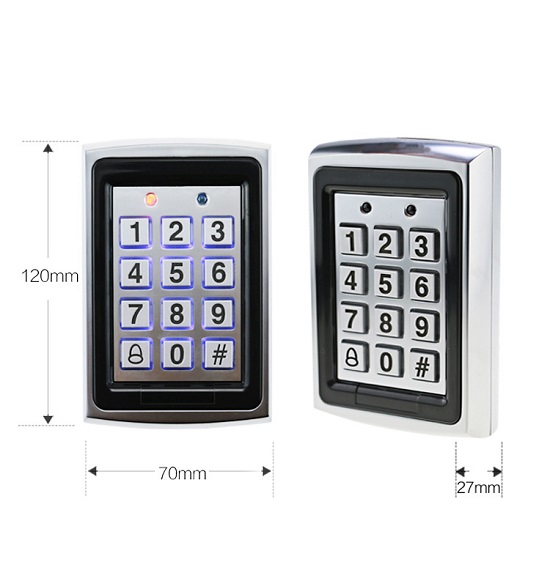

Dimensions: 120×70×27mm
Description

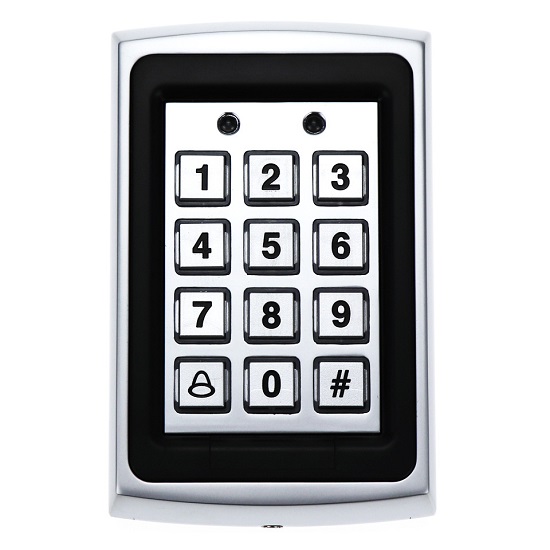

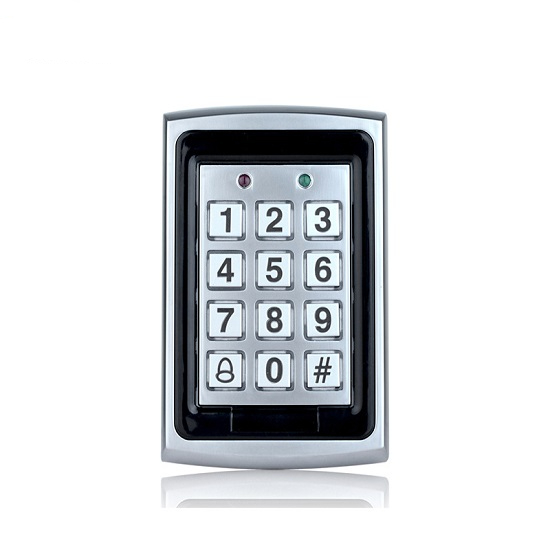

Metal Standalone Access Controller Keypad with EM/ID Reader Build in
The access controller plays an important role in the access control system. Generally speaking, the access control system includes control panel, electric lock, access control keypad, card reader, switch button or exit button, and power supply.
Access Controller Specifications:
| Item Name : | A10 Stand Alone Access Controller with EM Reader |
| User: | 1000 |
| Operate voltage： | 12 VDC 1.2A |
| Wiegand: | Wiegand 26 in ( can connect an extra reader) |
| Card Frequency: | EM/ID 125KHZ |
| Entry Mode: | Card/Card+Pin/Pin |
| Material: | Metal |
| Waterproof: | Surface Waterproof ( Better work with Rain Cover if outdoor ) |
| Dimensions: | 120×70×27mm |
| Back Light: | Blue by defult (Can be customized Green) |

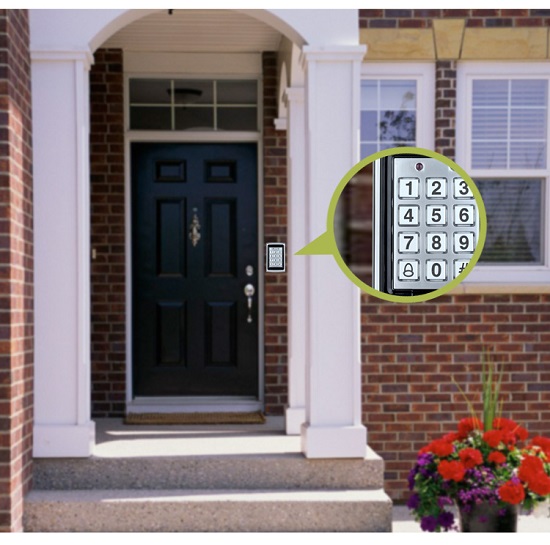

Access Controller Diagram and Installation
Please kindly contact our Sales Dpt for more details .
