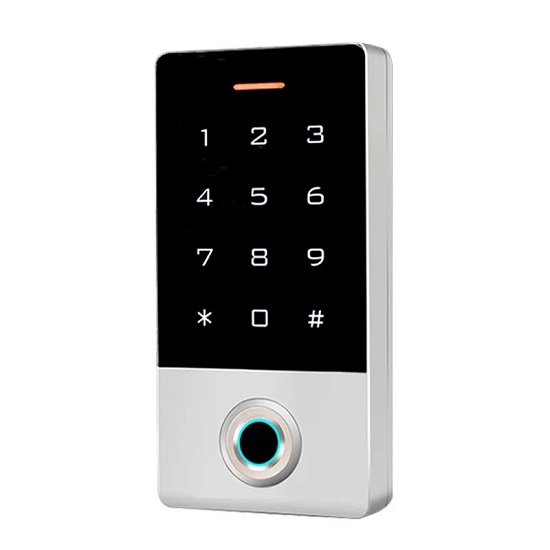

Fingperint Access Controller Touch Keypad Reader
Model:F1 series
600 fingerprint/10,000 User or Pin
Weigand 26 out/in
EM/ID 125KHZ or Mifare/IC 13.56MHZ Reader Built in
Entry Mode: Fingerprint / Card / Pin
Description

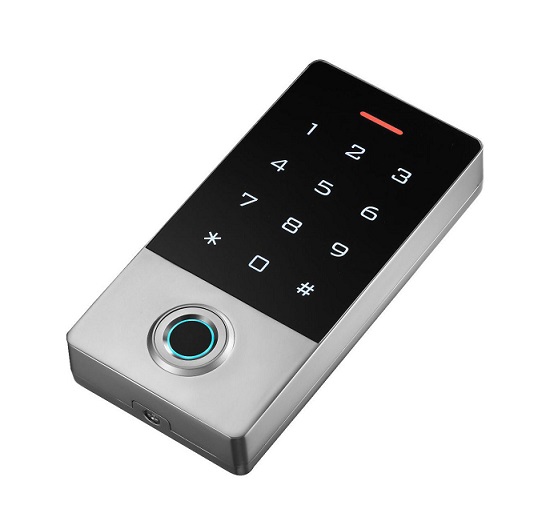

Fingperint Access Controller Touch Keypad Reader
This series product is a new generation of multl -function standalone access control. It adopts new ARMcore32-bitmicroprocessor design, which is powerful, stable and reliable. It contains reader node and standalone access control mode etc.. It’s widely applied to different occasions, such as office,residential communities, villa, bank and prison ect.

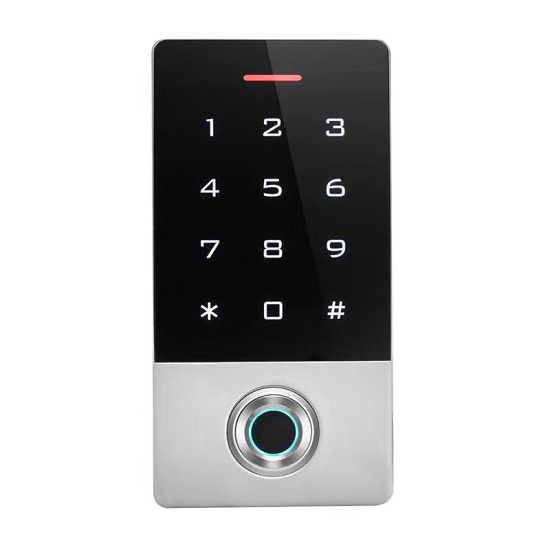

1. Fingerprint Access Controller Features:
| Card Type: | 125khz EM/ID Card 13.56mhz Mifare/IC Card |
| Keypad Characteristic: | Metal backlight keypad |
| Output Way: | contain reader mode, the transmission format could be adjusted by user |
| Access Way: | Support seven access ways |
| Admin Card: | Support admin add card and admin delete card |
| User Capacity: | 10,000 card users and 600 fingerprint user |
2. Fingerprint Access Controller Technical Specifications
| Operating Voltage: | DC 12-24V |
| Standby Current: | ≤35mA |
| Operating Current: | ≤100mA |
| Operating Temperature: | -40℃~ 60℃ |
| Operating Humidity: | 0% ~ 95% |
| Access Ways: | Fingerprint, card, code, or multiple combination methods |

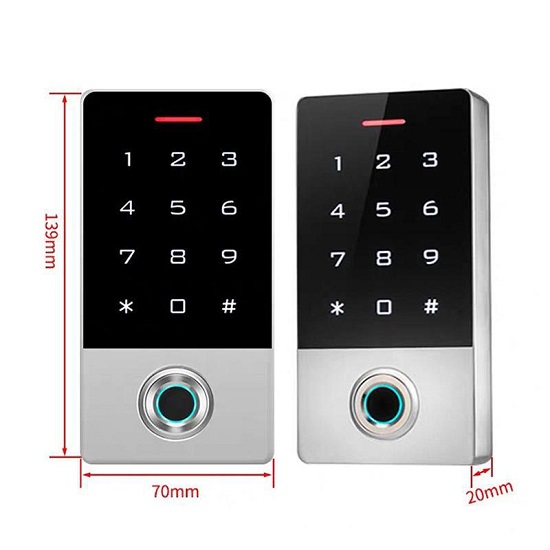

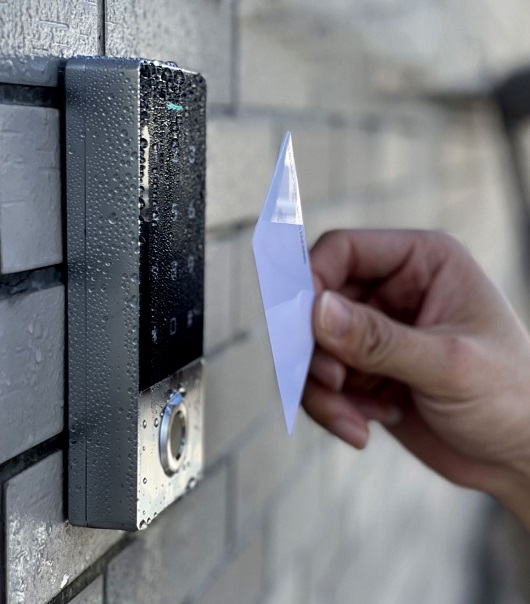

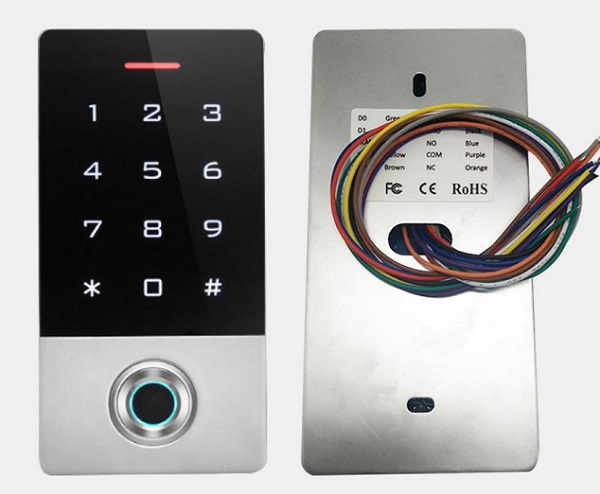

| IP68 Waterproof | Optional |
| Wifi ( Tuya App) | Optional |

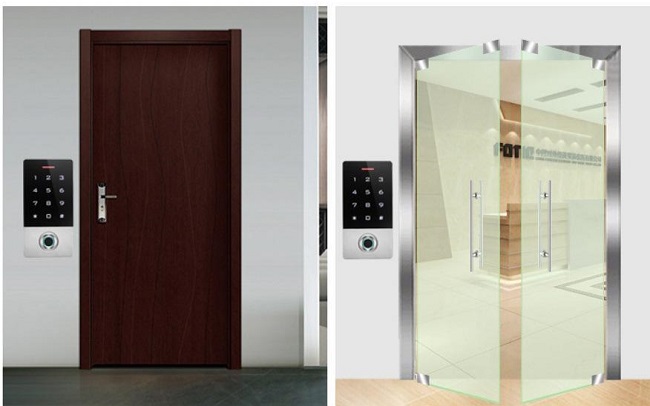

3. Fingerprint Access Controller Installation

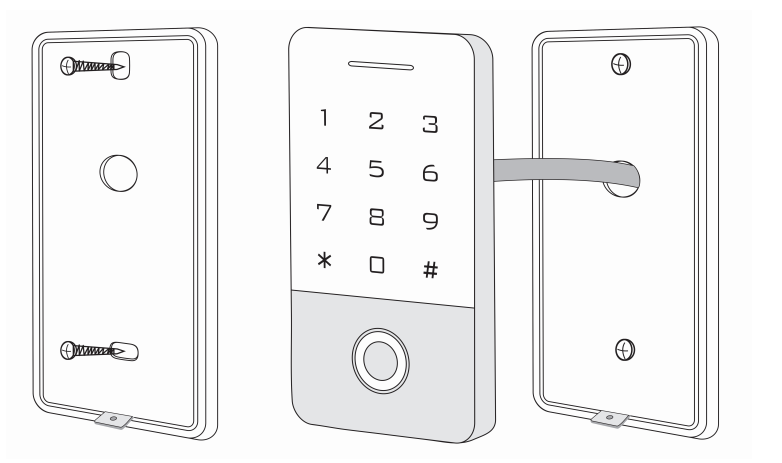

3.1 Remove the back cover from the keypad using the supplied special screw driver
3.2 Drill 2 holes on the wall for the self-tapping screws and i hole for the cable
3.3 Put the supplied rubber bungs to into the two holes
3.4 Fix the back cover firmly on the wall with 2 self tapping screws
3.5 Thread the cable through the cable hole
3.6 Attach the keypad to the back cover.

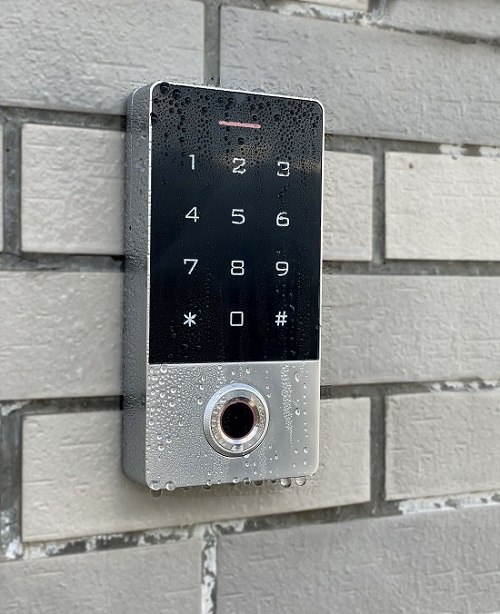

(See the figure below)
4. Fingerprint Access Controller Diagram
4.1 Common Power Supply
4.2 Special Power Supply
4.3 Reader Mode
