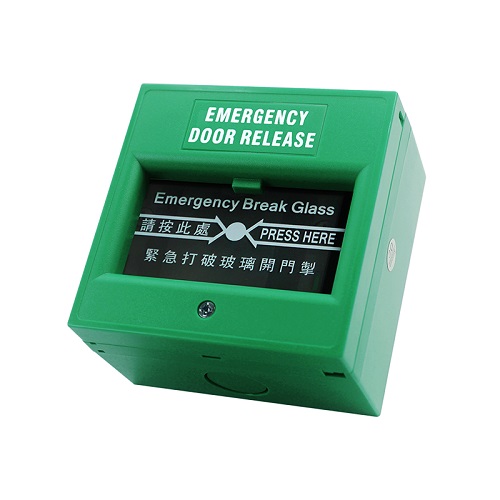

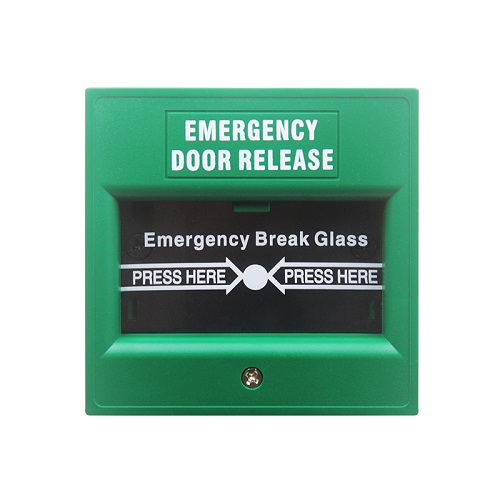

Emergency Door Release Break Glass Green Color
Description
Emergency break glass button alarm switch
Emergency breack glass button comes with base with test key ,reusable after changing glass sheets.
It is ABS material, both shell and glass support customized LOGO pattern printing.
What is 1 pole and 2 pole in emergency break glass button ?
Single pole, NO/NC/COM normally open and normally closed output
Double-pole model, 2NO/2NC/2COM, two sets of normally open and normally closed output
What colors we have for emergency break glass button ?
We have Green , Red, White , Yellow , Blue for emergency breack glass door release button .
Usually clients prefer green and red ,and white .
Specifications for emergency break glass button:
| Item Model# : | BG809 | BG809D |
| Relay Output: | NO/ NC/ COM | 2NO/ 2NC/ 2COM |
| Supply voltage: | DC12-30V, 2A | |
| Size: | 86L*86W*52H (mm) | |
| Weight (kg): | 0.165 | |
| Product material: | ABS | |
| Panel pattern/logo: | can be customized according to customer requirements | |
| Durability test: | 500,000 times test | |
| Applicable temperature: | -20℃ ~+55℃ (-4+131F) | |
| Operating humidity: | 0-95% (relative humidity) | |
| Packing parameters: | 1pcs/box, 100pcs/box (510*430*330 mm) | |
Size for emergency door release
Customized logo is available , print logo on product , on glass

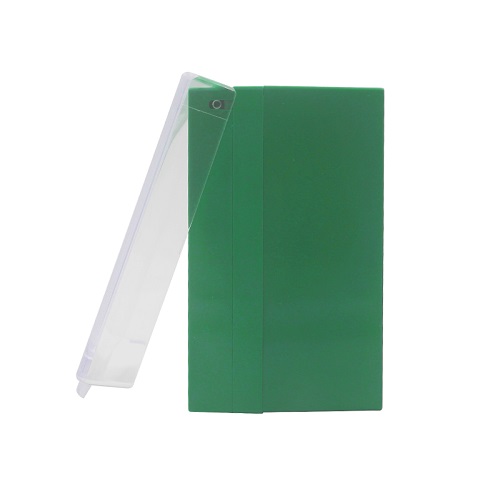

Spare parts for emergency break glass door release — Glass and Protect Cover
Glass ( Letters can be customized to other language if needed )
Glass–75mm*40mm*1mm Explosion-proof membrane processing not splash cuts to injure a person
