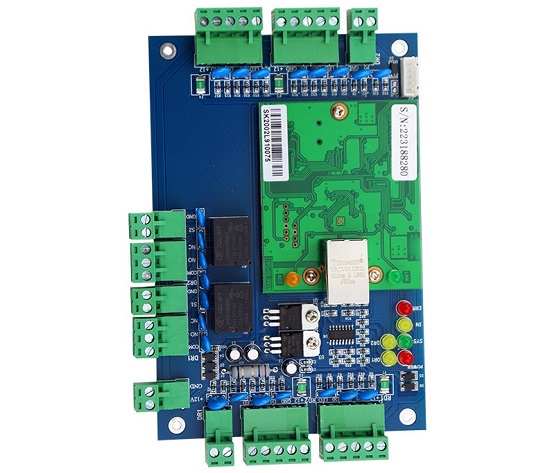

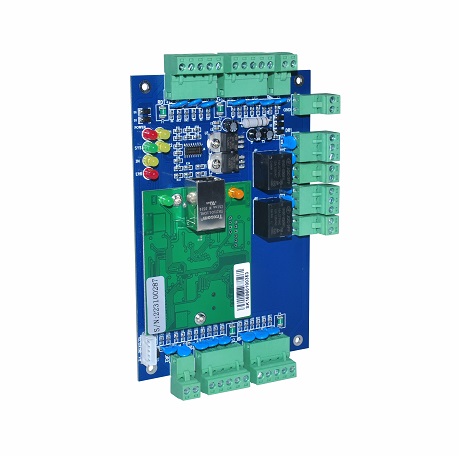

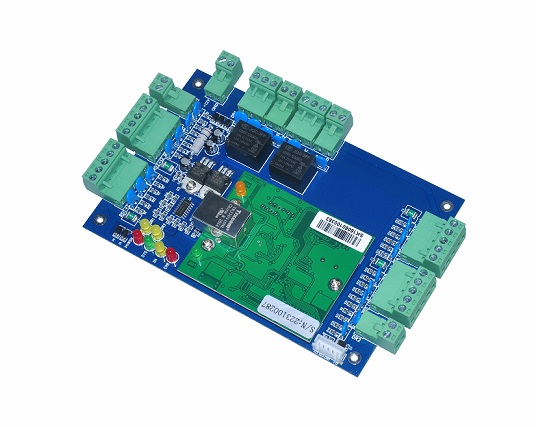

Product : Double Doors Access Control Panel
Model: w02.net
User: 40,000
Records: 100,000
Power: DC9.6V-14.4V , Rated Max.1A
Communication: Wiegand 26 ,Wiegand 34 ,TCP/IP
Description
What is Access Control Panel?
An Access Control Panel, also known as a control panel or panel controller, is a device that is used to manage and monitor access to a secure area or building. It is typically used in conjunction with an access control system, which consists of various devices and components that work together to restrict and allow access to a facility or area. The access control panel is the central hub of the system and is responsible for receiving input from various sensors and devices, such as card readers, door contacts, and motion detectors, and then processing and interpreting this information to determine whether access should be granted or denied. The panel also provides a user interface for managing and configuring the access control system, and it may be able to generate reports or send alerts when certain events or conditions are detected. Access control panels can be standalone units or they may be integrated into a larger security system.
Access Control Panel Specifications:
| Item: | Double Doors IP TCP Access Control Panel |
| Model: | w02.net |
| Communication Method: | TCP/IP 10M/100M self adaptive, Webserve |
| Number of User Registration Cards: | 40,000 card permissions |
| Record the Number of Standalone Storage: | 100,000 storage records |
| Reader Input Format: | Wiegand 26 |

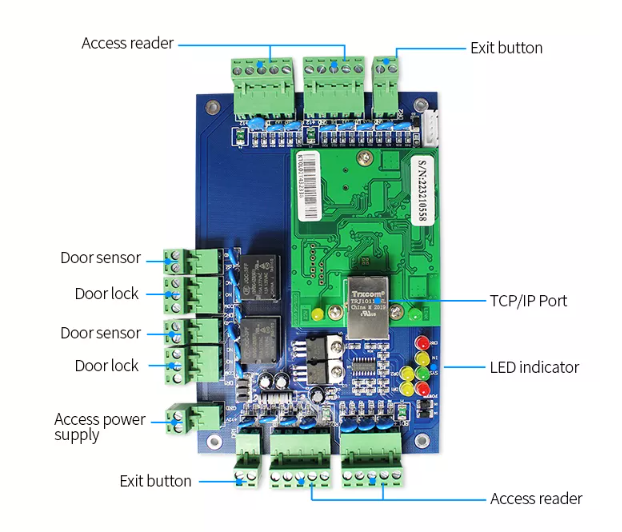

| Function Description: | Control two doors, enter via card swiping and exit via card swipping or button |
| Quantity of Reader: | 4 |
| Can control the door output relay: | 2 |
| Door Open delay time: | 1-600 seconds adjustable |
| Maximum number of connections: | No limite |
| Operating Temperature: | -40℃ to 70℃ |
| Operating Humidity: | 10-90% RH, non-condensing |
| Power Supply: | 12VDC 4-7A |
| Maximum distance from card reader to controller: | 100 meters, within 80 meters is recommended. |
| Controller-to-controller maximum distance: | TCP/IP communication method: depends on the network coverage. |
| Fire linkage Alarm linkage: | If the expansion board is not connected, it only has an alarm prompt on the software interface, and drives the computer speaker to give an alarm. If the alarm expansion linkage board is connected, it has the hardware alarm output function, and if the reinforced expansion board is connected, it also has the anti-theft alarm function. |

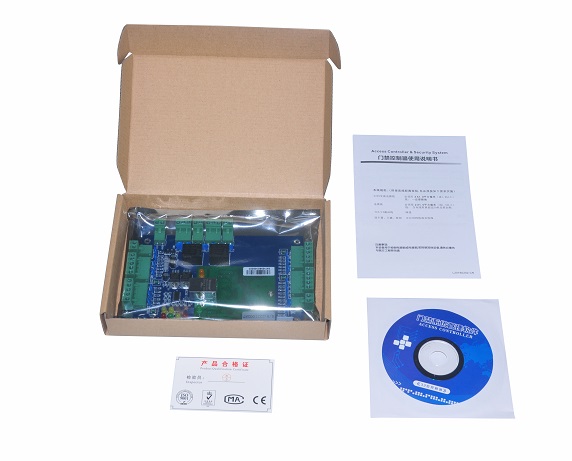

Package for the Access Control Panel

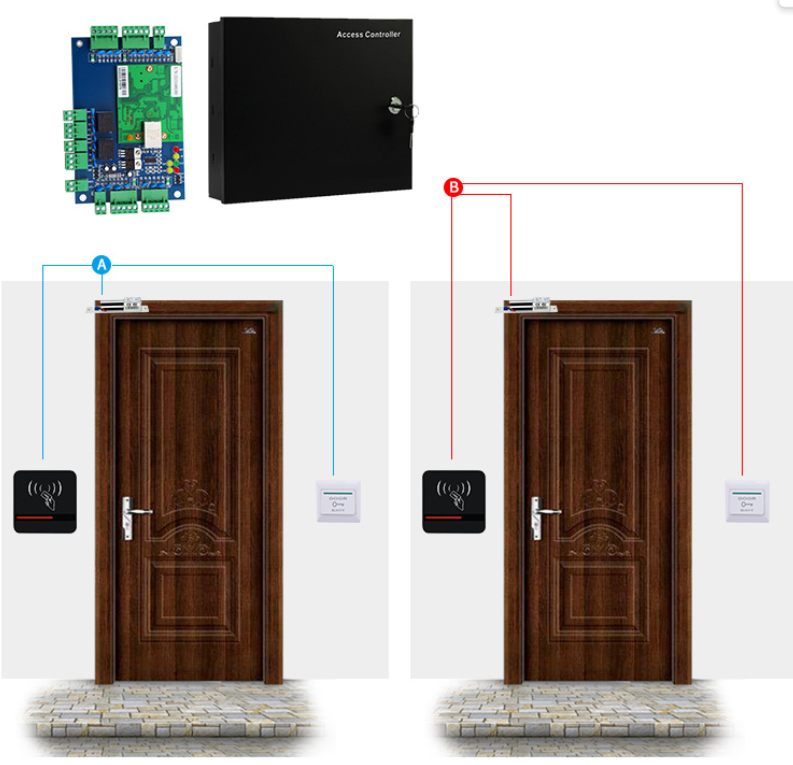

Double Doors TCP Access Control Panel Solution
