Emergency Door Release Break Glass Red Color
Model：EB86R
Emergency Call Point
NO/NC/COM
ABS Material
Description
Break Glass Door Release Emergency Door Release Button Access Control
Emergency breack glass button comes with base with test key ,reusable after changing glass sheets.
It is ABS material, both shell and glass support customized LOGO pattern printing.
What is Break Glass Door Release Button?
A Break Glass Door Release Button is a type of emergency exit device that allows people to quickly and easily open a door in an emergency situation. These buttons are typically installed on doors that are used as emergency exits in buildings, such as in office buildings, schools, and hospitals. When the button is pressed, it breaks a small glass panel on the door, allowing access to a latch or handle that can be used to open the door. These buttons are often used in conjunction with other emergency exit devices, such as panic bars, to provide multiple ways for people to quickly and easily exit a building in an emergency.
What is 1 pole and 2 pole in emergency break glass button ?
Single pole, NO/NC/COM normally open and normally closed output
Double-pole model, 2NO/2NC/2COM, two sets of normally open and normally closed output
What colors we have for emergency break glass button ?
We have Green , Red, White , Yellow , Blue for emergency break glass door release button .
Usually clients prefer green and red ,and white .
Specifications for emergency break glass button:
| Item Model# : | EB86R | EB86R |
| Relay Output: | NO/ NC/ COM | 2NO/ 2NC/ 2COM |
| Supply voltage: | DC12-30V, 2A | |
| Size: | 86L*86W*52H (mm) | |
| Weight (kg): | 0.165 | |
| Product material: | ABS | |
| Panel pattern/logo: | can be customized according to customer requirements | |
| Durability test: | 500,000 times test | |
| Applicable temperature: | -20℃ ~+55℃ (-4+131F) | |
| Operating humidity: | 0-95% (relative humidity) | |
| Packing parameters: | 1pcs/box, 100pcs/box (510*430*330 mm) | |

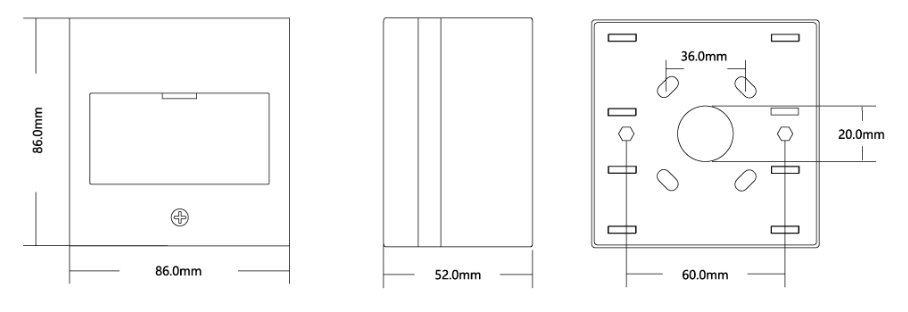

Size for emergency door release
Customized logo is available , print logo on product , on glass

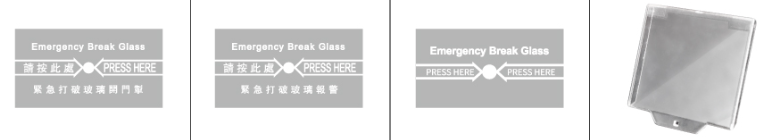

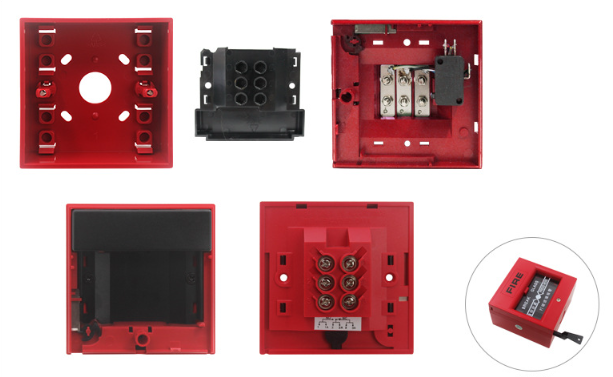

Spare parts for emergency break glass door release — Glass and Protect Cover
Glass ( Letters can be customized to other language if needed )
Glass–75mm*40mm*1mm Explosion-proof membrane processing not splash cuts to injure a person
