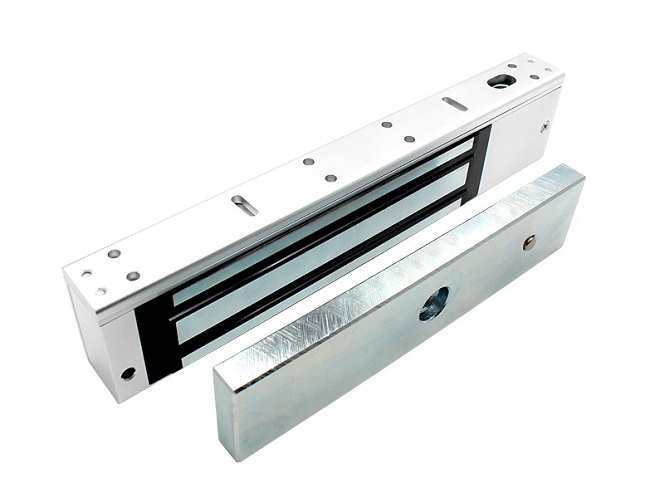

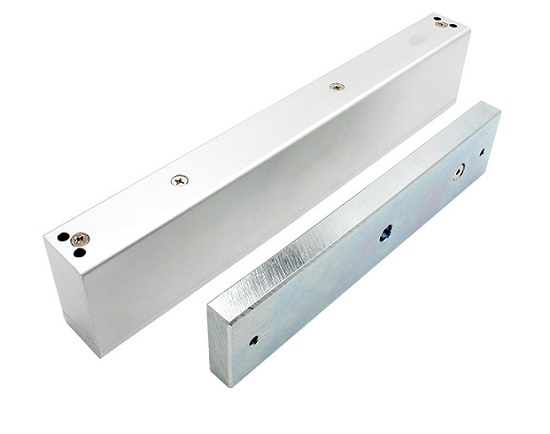

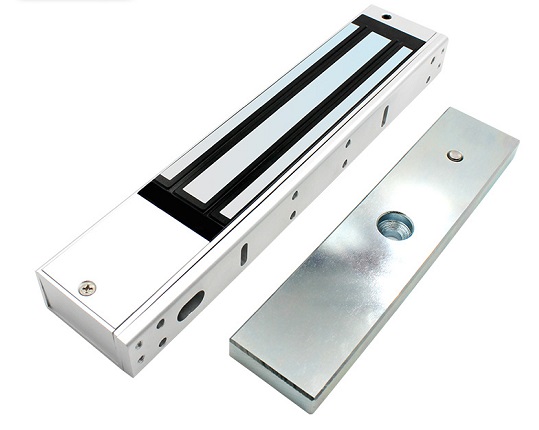

Magnetic Lock, Surface Mounted
Case: Aluminum alloy
Holding force: :350kg/800lb

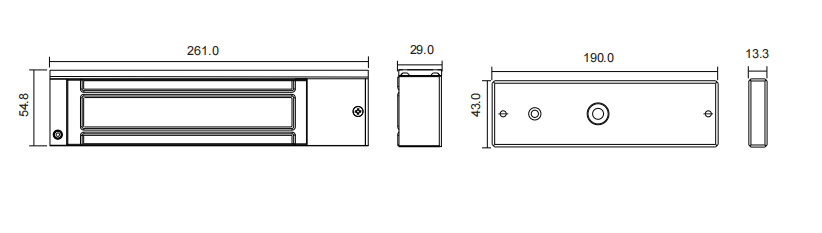

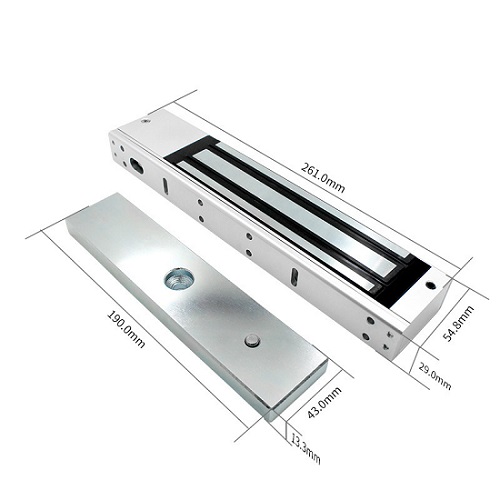

Dimension: 261L*54.8W*29H (mm)
Voltage:12V or 24V (switchable)
Description
Single Door 350KG 600lbs Magnetic Lock For Access Control System
In general, magnetic locks used for glass doors, wooden doors, fire doors, sliding doors, metal doors.
It has different model, the differences are kg/lbs, functions, mounted type.
Holding force: 60kg, 180kg, 280kg, 350kg, 500kg. 280kg is more common in the market.
Functions are: stardard function, Singal output, Time delay.
Mounted type: Surface mounted and Conceal mounted.
350KG/800LBS Surface mounted Magnetic Lock
| Model: | EM350 | EM350S | EM350T | EM350ST |
| LED: | Red only | Red & Green | Red only | Red & Green |
| Signal Output: | X | ✓ | X | ✓ |
| Time Delay: | X | X | ✓ | ✓ |
| Material: | Aluminum alloy | |||
| Lock Dimension: | 250L*48W*27H(mm) | |||
| Working Voltage: | 12V/24V (switchable) | |||
| Working current: | 12V/0.43A,24V/0.29A | |||
| Weight: | 2.3kg/pcs | |||
| Qty/CTN: | 10pcs/CTN | |||
Upgraded and thickened, thickened lock shell, made of high-strength aluminum material, integrated molding, real material, safe and strong, anti-corrosion.
Independent research and development, a variety of functions can be customized, support OEM and ODM, products have passed authoritative testing, quality assurance

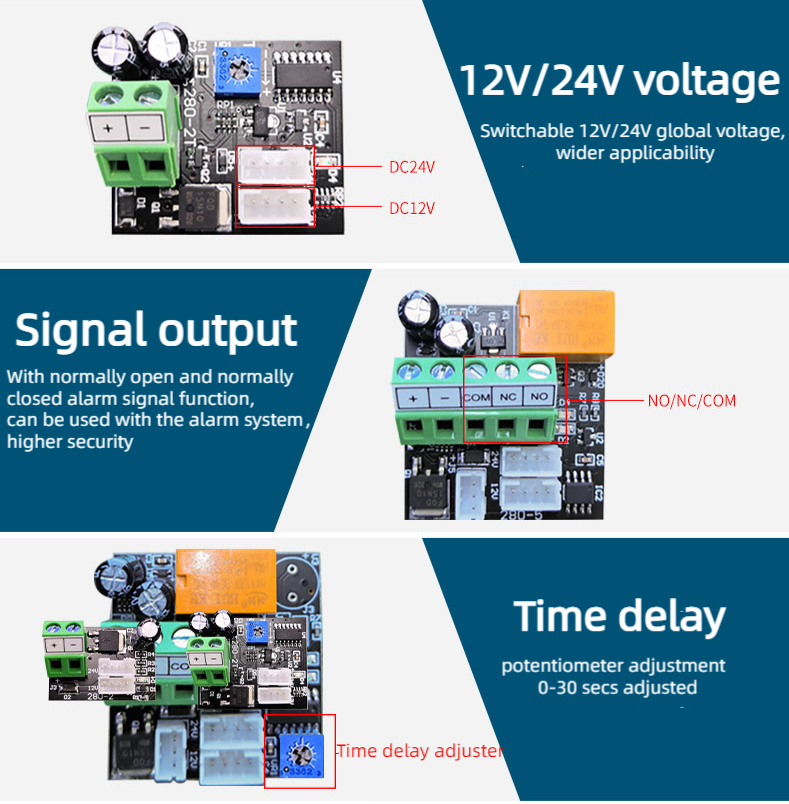

Optional Functions:
1.Signal output
2.Time delay 0-30s delay
3.Signal output & Time delay

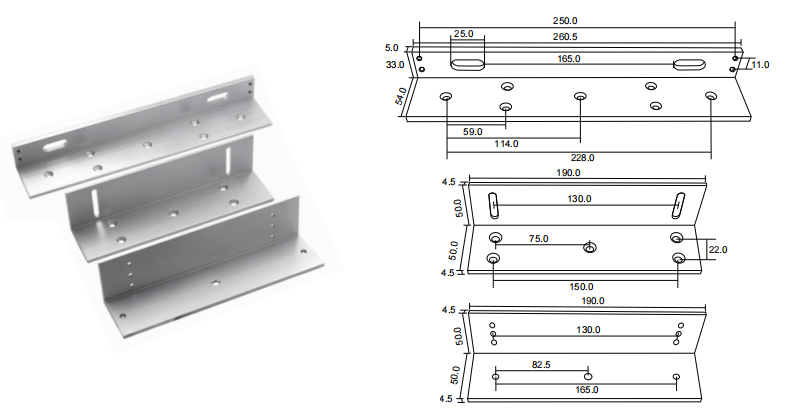

350KG 800LBS Magnetic lock work with ZL Bracket
| Item Model: | 350ZL |
| Dimension for ZL Bracket: | L Bracket: 260.5L*54W*33H(mm)
Z1 Bracket: 190L*50W*50H(mm) Z2 Bracket: 190L*50W*50H(mm) |
| Material: | High strength Aluminum |
| Suitable: | Work with 350KG 600LBS Magnetic Lock |
| Opening For: | 90 Degree Door |
